6ES7522-1BL01-0AB0 IN BOKARO

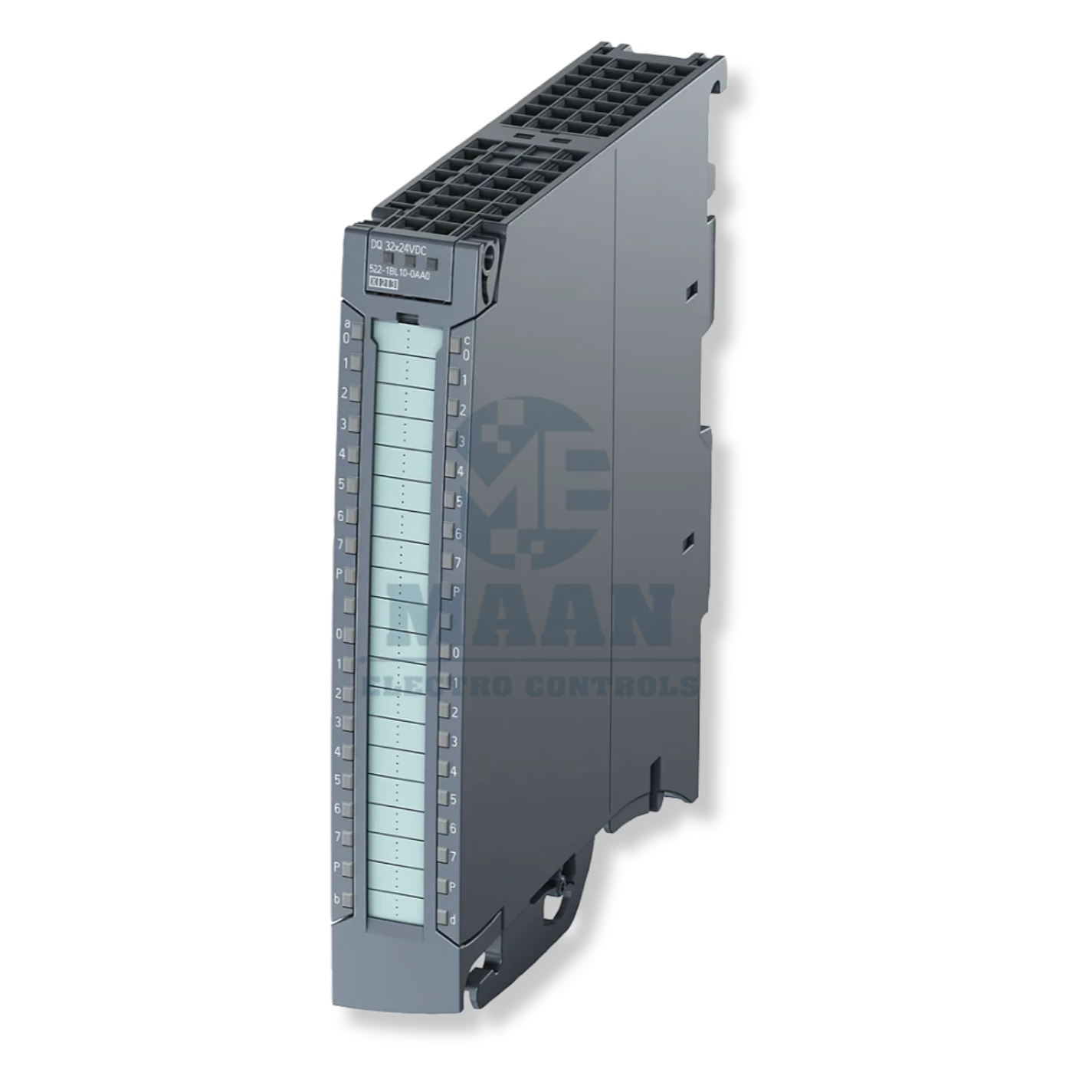

Siemens SIMATIC S7-1500 DQ 32 × 24 V DC/0.5 A HF Digital Output Module – 6ES7522-1BL01-0AB0
The Siemens 6ES7522-1BL01-0AB0 combines 32 digital output channels with single-channel diagnostics, substitute-value functionality, and switching-cycle counters for connected actuators. Designed for compatible SIMATIC S7-1500 systems, it provides 24 V DC outputs rated at 0.5 A per channel, arranged in four groups of eight channels, with 4 A per group.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1500
· Order Number: 6ES7522-1BL01-0AB0
· Product Type: Digital Output Module
· Module Designation: DQ 32 × 24 V DC/0.5 A HF
· Digital Output Channels: 32
· Output Voltage: 24 V DC
· Output Current: 0.5 A per channel
· Channel Grouping: 8 channels per group
· Number of Output Groups: 4
· Current per Group: 4 A
· Diagnostics: Single-channel diagnostics
· Additional Functions: Substitute value and actuator switching-cycle counter
· Front Connector: Ordered separately
· Connector Options: Screw terminals or push-in
BENEFITS
· Adds 32 switching points through one output module.
· Combines output control with channel-level diagnostic information.
· Supports maintenance planning using actuator switching counts.
· Offers front-connector choices to match the panel’s wiring approach.
APPLICATION
· Assembly Lines: Issue programmed commands to suitable devices across multiple stations.
· Pneumatic Systems: Switch compatible solenoid valve coils with appropriate protection.
· Relay Interfaces: Activate suitable interface relays within the electrical ratings.
· Machine Indication: Control compatible lamps for operating-status displays.
· Connector Selection: Order the required screw-terminal or push-in front connector separately.
