6FX3002-2CT12-1AD0 – SIEMENS MOTION-CONNECT 300 SIGNAL CABLE
Maan Electro Controls – Siemens Motion Control Cable Supplier & Stockist

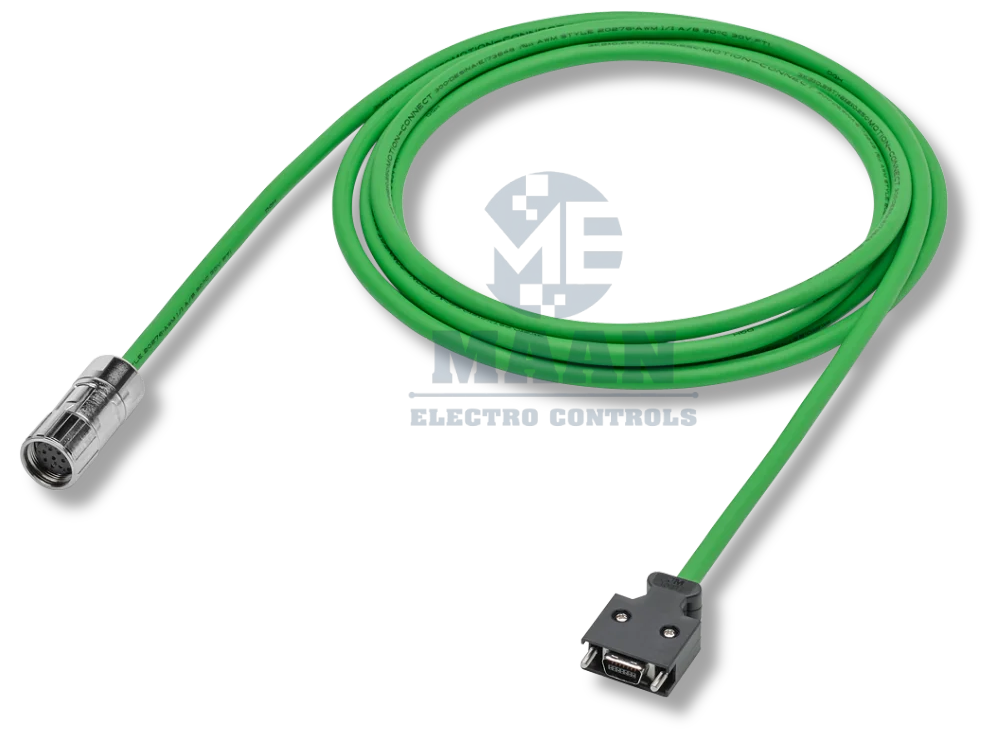

The Siemens 6FX3002-2CT12-1AD0 is a pre-assembled signal cable for incremental encoder TTL applications, designed for use with SIMOTICS S-1 servo motors and compatible Siemens motion-control systems.
This MOTION-CONNECT 300 signal cable features a 3 m length, straight connector, and cable construction of 3X2X0.2 + 2X2X0.25C. It is designed for reliable encoder signal transmission between the motor and compatible SINAMICS servo-drive systems.
The cable has a maximum outer diameter (Dmax) of 7.2 mm and is specified without UL approval for the connector on the motor side.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Product Type: Signal Cable
· Order Number: 6FX3002-2CT12-1AD0
· Application: Incremental Encoder TTL
· Compatible Motor Series: SIMOTICS S-1
· Cable Type: Pre-assembled Signal Cable
· Cable Construction: 3X2X0.2 + 2X2X0.25C
· Cable Length: 3 m
· Connector Version: Straight Connector
· Maximum Cable Diameter: Dmax = 7.2 mm
· Motor-Side Connector: No UL
· Product Series: MOTION-CONNECT 300
· Application Area: Servo and motion-control systems
TECHNICAL FEATURES
1. Pre-Assembled Signal Cable
The 6FX3002-2CT12-1AD0 is supplied as a pre-assembled cable, helping simplify installation and connection in Siemens servo and motion-control systems.
2. Incremental Encoder TTL Connection
This signal cable is designed for incremental encoder TTL feedback applications, supporting encoder signal transmission for compatible servo motor systems.
3. 3 Meter Cable Length
With a 3 m cable length, the cable provides a practical connection distance for compact machine layouts and servo-control cabinet installations.
4. Straight Connector Design
The cable is supplied with a straight connector version, providing a conventional connection arrangement for compatible motor-side and drive-side installations.
5. MOTION-CONNECT 300
As part of the MOTION-CONNECT 300 cable family, the cable is intended for Siemens motion-control applications where suitable motor and encoder connections are required.
6. Compact Cable Diameter
The cable has a specified maximum outer diameter of 7.2 mm, supporting installation in applications where cable routing space is limited.
BENEFITS
· Genuine Siemens MOTION-CONNECT 300 signal cable
· 3 m pre-assembled cable
· Designed for incremental encoder TTL applications
· Suitable for compatible SIMOTICS S-1 motor systems
· Straight connector version
· Dmax 7.2 mm
· Cable construction 3X2X0.2 + 2X2X0.25C
· Simplifies servo-system wiring and installation
· Suitable for Siemens motion-control applications
· Designed for encoder feedback signal transmission
· Useful for OEM machine builders and system integrators
· Suitable for replacement and new machine installations
