6FX3002-2CT12-1AF0

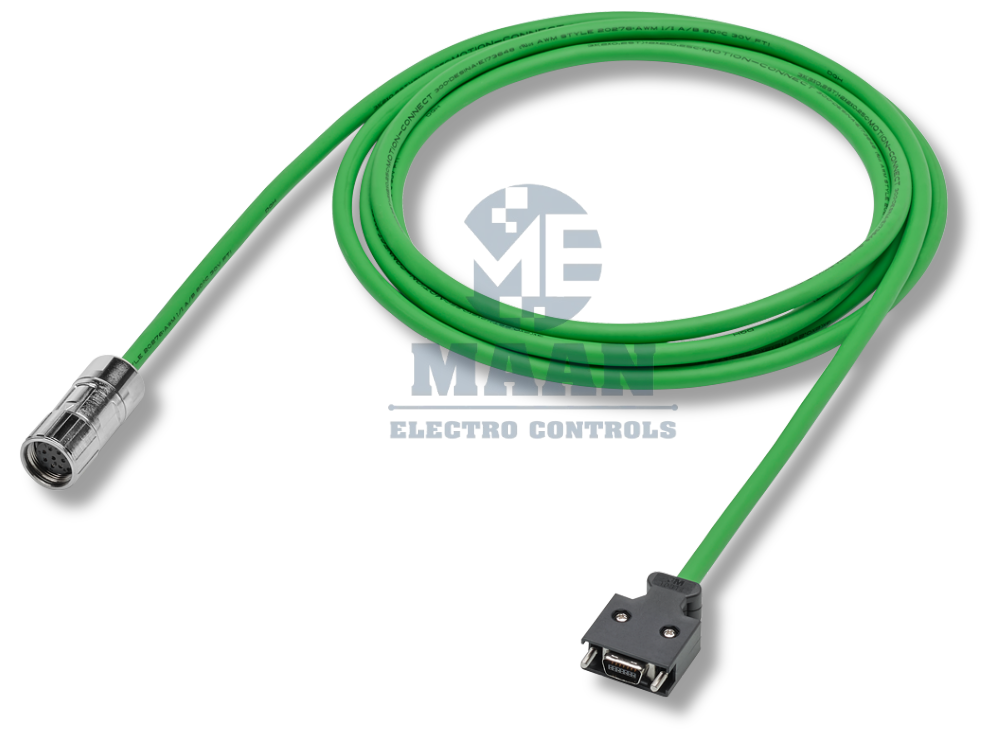

Siemens 6FX3002-2CT12-1AF0 – MOTION-CONNECT 300 Signal Cable
Siemens 6FX3002-2CT12-1AF0 is a pre-assembled MOTION-CONNECT 300 signal cable designed for TTL incremental encoder feedback applications in Siemens servo and motion-control systems. The cable features a straight motor-side connector, a 5 m cable length, and a maximum cable diameter of 7.2 mm.
It is suitable for connecting compatible SIMOTICS S-1FL6 servo motors with SINAMICS V90 servo drives where TTL incremental encoder feedback is used.
Product Details
- Siemens Order No.: 6FX3002-2CT12-1AF0
- Product: Signal cable, pre-assembled
- Cable Type: MOTION-CONNECT 300
- Application: Incremental encoder TTL
- Compatible Encoder: TTL encoder
- Cable Construction: 3 × 2 × 0.2 + 2 × 2 × 0.25 C
- Length: 5 m
- Motor-side connector: Straight connector
- Motor-side UL: No UL
- Maximum Cable Diameter (Dmax): 7.2 mm
- Application: Servo motor feedback / encoder signal connection
- Typical System: SINAMICS V90 + SIMOTICS S-1FL6
Benefits
- Pre-assembled: Ready-to-install cable reduces wiring and assembly work.
- Reliable encoder feedback: Designed for transmitting TTL incremental encoder signals between the servo motor and drive.
- 5 m length: Suitable for installations requiring moderate motor-to-drive distance.
- Straight connector design: Supports convenient and organized motor-side connection.
- MOTION-CONNECT 300: Suitable for Siemens motion-control and servo applications.
- Compact cable diameter: 7.2 mm maximum diameter helps simplify cable routing.
- Servo-system compatibility: Useful for Siemens V90 and S-1FL6 configurations using compatible TTL feedback.
- Industrial automation ready: Suitable for machine builders, OEM panels, and automated machinery.
Features
· Pre-assembled MOTION-CONNECT 300 cable
· TTL incremental encoder compatible
· 5 m length
· Straight motor-side connector
· Dmax: 7.2 mm
· Cable: 3×2×0.2 + 2×2×0.25 C
· Suitable for SIMOTICS S-1FL6 / SINAMICS V90
· No UL on motor-side connector
· Ideal for servo feedback & motion-control applications
