6FX3002-2CT20-1CA0

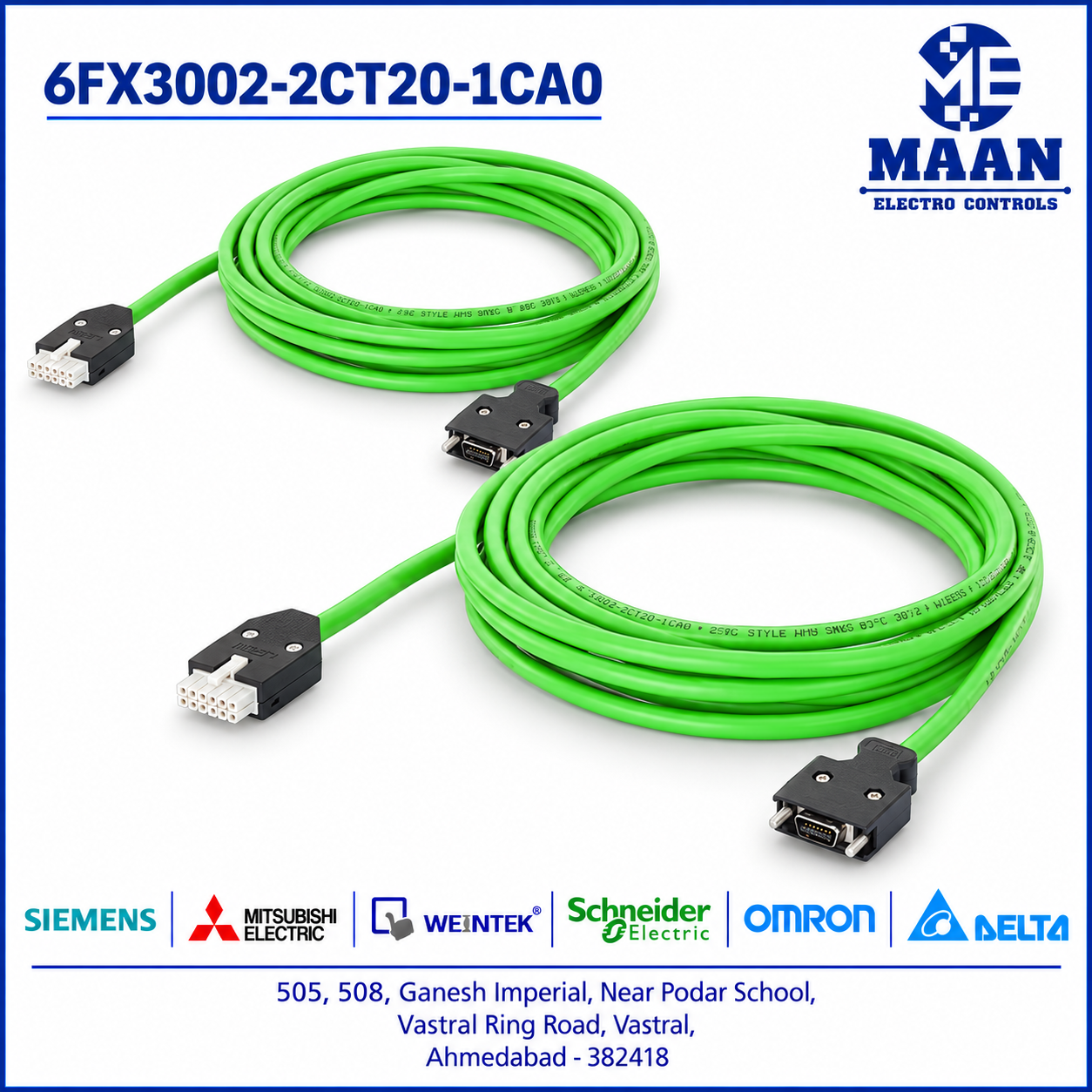

Siemens MOTION-CONNECT 300 Incremental Encoder Signal Cable – 6FX3002-2CT20-1CA0
The Siemens MOTION-CONNECT 300 – 6FX3002-2CT20-1CA0 is a 20-metre pre-assembled signal cable for the incremental encoder in compatible SIMOTICS S-1FL6 LI motors. It features a conductor configuration of 3 × 2 × 0.20 mm² + 2 × 2 × 0.25 mm², UL/CSA approval, and a maximum cable diameter of 7.5 mm for the specified encoder connection.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Order Number: 6FX3002-2CT20-1CA0
· Product Type: Pre-assembled Signal Cable
· Application: Incremental encoder connection
· Motor Compatibility: SIMOTICS S-1FL6 LI
· Conductor Configuration: 3 × 2 × 0.20 mm² + 2 × 2 × 0.25 mm²
· Cable Length: 20 m
· Maximum Cable Diameter: 7.5 mm
· Approvals: UL/CSA
FEATURES
· Incremental Encoder Application: Designed for the stated encoder interface in compatible S-1FL6 LI motors.
· Pre-assembled Construction: Reduces onsite preparation for the matching signal connection.
· 20-Metre Routing Length: Accommodates longer cable paths within the connected equipment’s permitted limits.
· Specified Conductor Arrangement: Provides defined conductor sizes and grouping for this cable version.
· UL/CSA Approval: Supports projects requiring these approvals for the signal cable.
INTEGRATION AND ROUTING
· Match the cable to the compatible S-1FL6 LI incremental encoder interface.
· Confirm the mating connection requirements of the associated drive.
· Check that the equipment permits the 20-metre encoder cable length.
· Include bends and connection allowances when measuring the complete route.
· Route and secure the signal cable according to the motor and drive installation instructions.
