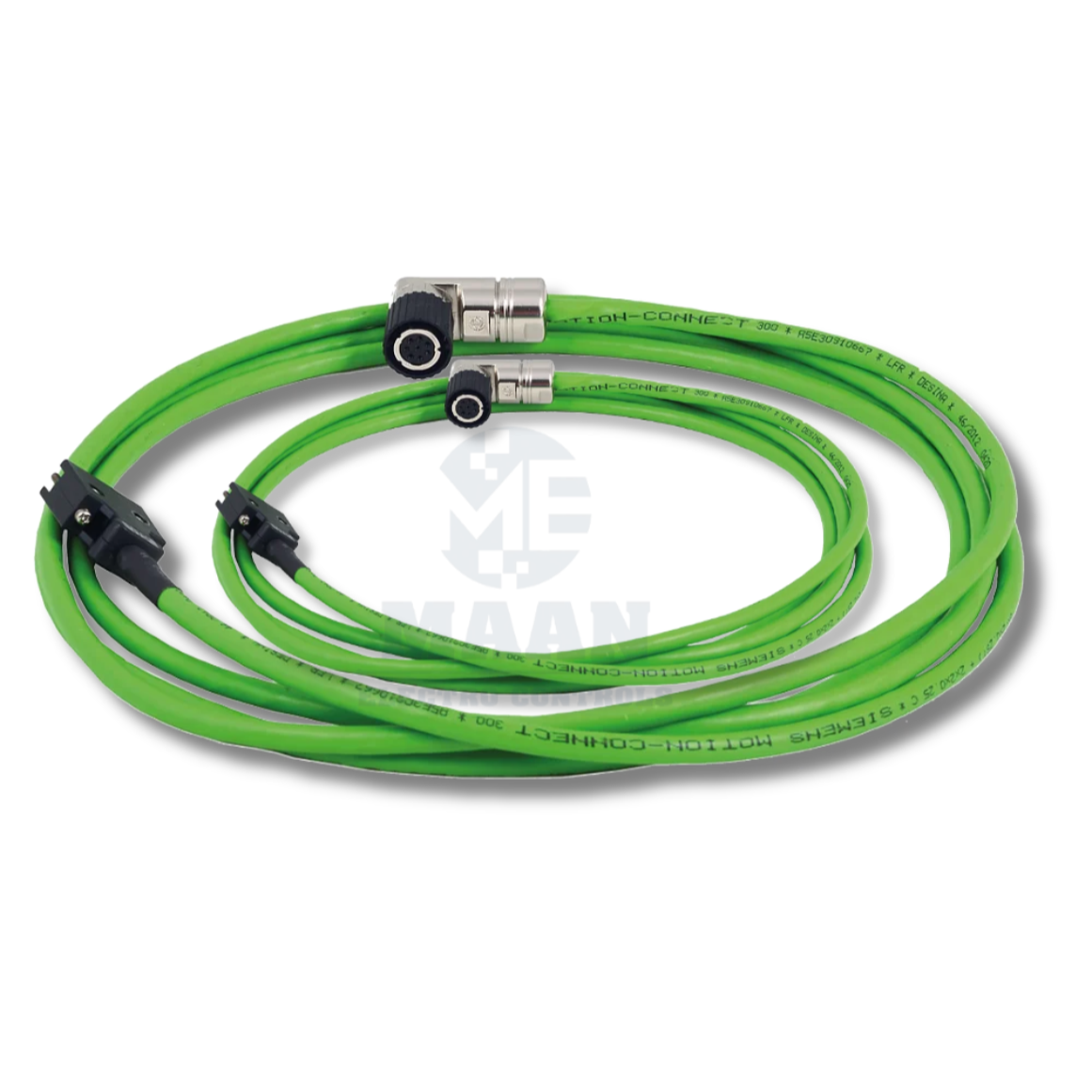

Siemens MOTION-CONNECT 300 Absolute Encoder Signal Cable – 6FX3002-2DB10-1BA0
The Siemens MOTION-CONNECT 300 – 6FX3002-2DB10-1BA0 is a 10-metre pre-assembled signal cable for the absolute encoder in compatible SIMOTICS S-1FL6 HI motors. With a conductor configuration of 3 × 2 × 0.22 mm² + 2 × 2 × 0.25 mm², UL/CSA approval, and a maximum diameter of 7.8 mm, it provides an encoder feedback connection for the specified motor application.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Order Number: 6FX3002-2DB10-1BA0
· Product Type: Pre-assembled Signal Cable
· Application: Absolute encoder connection
· Motor Compatibility: SIMOTICS S-1FL6 HI
· Conductor Configuration: 3 × 2 × 0.22 mm² + 2 × 2 × 0.25 mm²
· Cable Length: 10 m
· Maximum Cable Diameter: 7.8 mm
· Approvals: UL/CSA
FEATURES
· Absolute Encoder Application: Designed for the absolute encoder interface of the specified compatible motor.
· Pre-assembled Construction: Reduces onsite cable preparation for the matching connection.
· 10-Metre Length: Supports installations where the encoder cable route fits within the supplied length.
· Defined Conductor Arrangement: Provides the specified conductor configuration for this signal connection.
· UL/CSA Approval: Supports cable selection for projects requiring these approvals.
BENEFITS
· Provides a dedicated cable option for compatible motor encoder feedback.
· Simplifies replacement selection through an exact order number and fixed length.
· Helps plan cable passages using the specified 7.8 mm maximum diameter.
· Suits new machine assembly or replacement of an existing cable with the same specification.
INTEGRATION AND ROUTING
· Match the cable to the absolute encoder version of the compatible S-1FL6 HI motor.
· Confirm the mating connection requirements of the associated drive equipment.
· Account for the complete routing path when selecting the 10-metre length.
· Route and secure the signal cable according to the equipment’s installation requirements.
