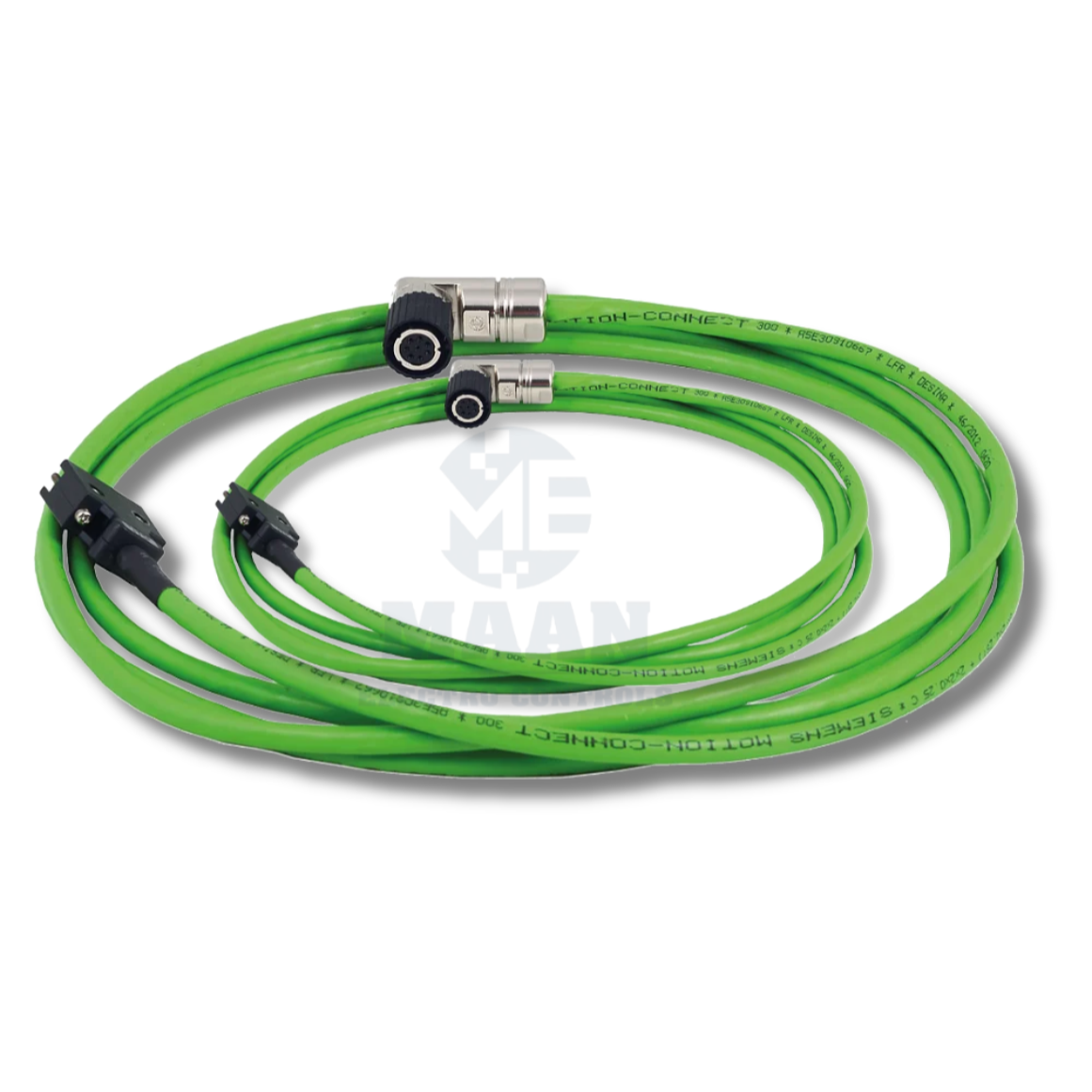

Siemens MOTION-CONNECT 300 Absolute Encoder Signal Cable – 6FX3002-2DB10-1CA0
The Siemens MOTION-CONNECT 300 – 6FX3002-2DB10-1CA0 is a 20-metre pre-assembled signal cable for the absolute encoder in compatible SIMOTICS S-1FL6 HI motors. Featuring a conductor configuration of 3 × 2 × 0.22 mm² + 2 × 2 × 0.25 mm², UL/CSA approval, and a 7.8 mm maximum diameter, it provides a specified encoder connection for installations requiring a longer cable route.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Order Number: 6FX3002-2DB10-1CA0
· Product Type: Pre-assembled Signal Cable
· Application: Absolute encoder connection
· Motor Compatibility: SIMOTICS S-1FL6 HI
· Conductor Configuration: 3 × 2 × 0.22 mm² + 2 × 2 × 0.25 mm²
· Cable Length: 20 m
· Maximum Cable Diameter: 7.8 mm
· Approvals: UL/CSA
BENEFITS
· Provides a dedicated cable option for the compatible encoder interface.
· Supports equipment layouts with greater routing distance between the motor and associated drive.
· Helps plan cable passages using the specified maximum diameter.
· Simplifies replacement identification through the exact order number and fixed length.
ROUTING AND SYSTEM MATCHING
· Confirm compatibility with the motor’s absolute encoder interface and the associated drive connection.
· Measure the complete route, including bends and connection allowances, against the 20-metre length.
· Check the equipment’s permitted encoder cable length before installation.
· Allow suitable routing space for the 7.8 mm maximum diameter.
· Route and secure the signal cable according to the motor and drive installation instructions.
