6FX3002-5CL02-1AH0

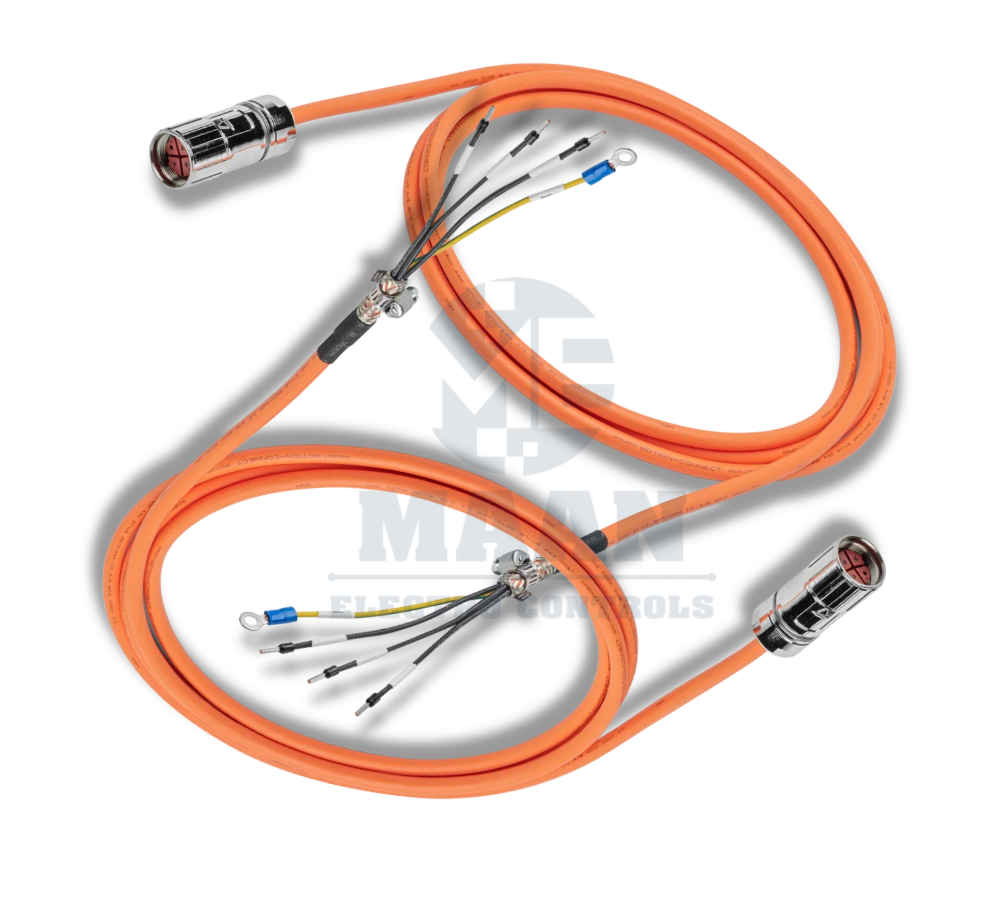

Siemens MOTION-CONNECT 300 Power Cable – 6FX3002-5CL02-1AH0
The Siemens MOTION-CONNECT 300 Power Cable – 6FX3002-5CL02-1AH0 is a pre-assembled motor power cable designed for compatible SIMOTICS S-1FL6 motors and SINAMICS V70/V90 servo drive systems.
This cable features a 4 × 1.5 mm² conductor configuration, is designed for 400 V motor applications, and is suitable for compatible V70/V90 frame size AA motor connections. It has a 7 m cable length, straight connector, and a motor-side connector with Dmax = 8.1 mm.
The 6FX3002-5CL02-1AH0 is a MOTION-CONNECT 300 cable without UL approval, intended for suitable Siemens servo motor and drive installations where a pre-assembled motor power connection is required.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: MOTION-CONNECT 300
· Product Type: Pre-assembled Power Cable
· Order Number: 6FX3002-5CL02-1AH0
· Cable Type: Motor Power Cable
· Conductor Configuration: 4 × 1.5 mm²
· Motor Compatibility: SIMOTICS S-1FL6
· Drive Compatibility: SINAMICS V70 / V90
· Motor Voltage: 400 V
· Compatible Frame Size: AA
· Cable Length: 7 m
· Motor-Side Connector: Straight connector
· Motor-Side Dmax: 8.1 mm
· Version: Pre-assembled
· UL Approval: No UL
· Cable Series: MOTION-CONNECT 300
· Application: Servo motor power connection
TECHNICAL FEATURES
1. MOTION-CONNECT 300 Power Cable
The 6FX3002-5CL02-1AH0 belongs to the Siemens MOTION-CONNECT 300 cable family and is designed for suitable Siemens motion-control applications.
2. Pre-Assembled Cable
The cable is supplied pre-assembled, helping simplify installation between compatible servo motor and drive components.
3. 4 × 1.5 mm² Cable Configuration
The cable uses a 4 × 1.5 mm² conductor configuration, designed for the specified compatible motor power connection.
4. 7 Metre Length
With a 7 m cable length, the cable provides additional installation flexibility between the servo motor and associated drive equipment.
5. Straight Motor-Side Connector
The cable features a straight connector on the motor side, supporting suitable connection arrangements for compatible motor installations.
6. Dmax = 8.1 mm
The motor-side connector specification includes Dmax = 8.1 mm, which should be considered when checking mechanical compatibility and installation clearance.
7. S-1FL6 Motor Compatibility
The cable is intended for compatible SIMOTICS S-1FL6 servo motor applications, providing the required motor power connection.
8. SINAMICS V70/V90 Compatibility
The 6FX3002-5CL02-1AH0 is designed for compatible SINAMICS V70/V90 servo drive systems with the specified motor configuration.
9. 400 V Motor Application
The cable is specified for compatible 400 V S-1FL6 motor applications, supporting suitable Siemens servo system configurations.
10. No UL Version
This particular version is specified as without UL approval, making it important to verify application and installation requirements before selection.
