6SL3210-1KE14-3UB2

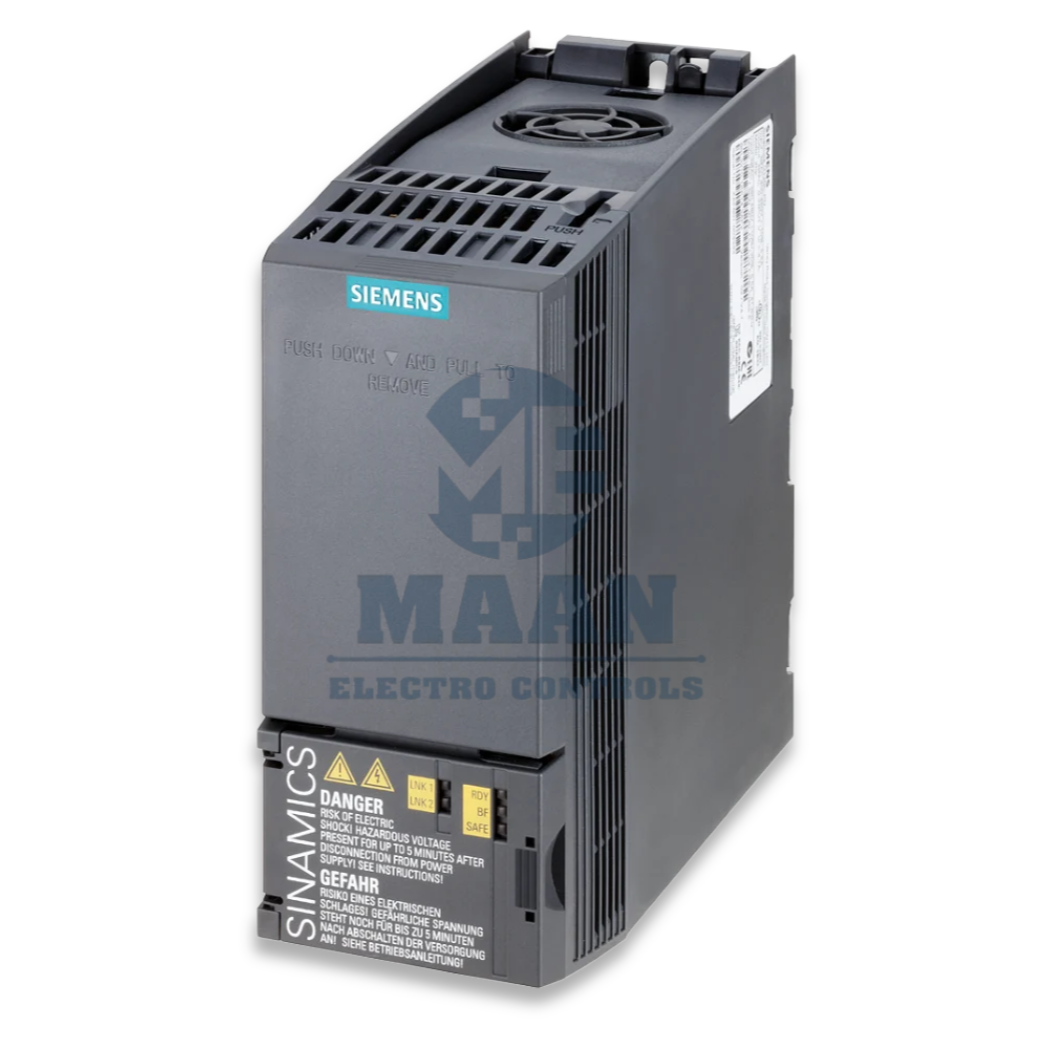

The Siemens SINAMICS G120C 6SL3210-1KE14-3UB2 is a compact variable frequency drive designed for reliable speed and torque control of three-phase AC motors in industrial automation and machine-building applications. With a 380–480 V, 3-phase power supply and a frequency range of 47–63 Hz, this drive provides controlled motor operation across a wide range of industrial applications.
This G120C model is designed around two different load profiles: Low Overload (LO) and High Overload (HO). It provides a 1.5 kW low-overload rating and 1.1 kW high-overload rating, allowing the drive to be matched with applications according to their continuous and peak load requirements.
The 6SL3210-1KE14-3UB2 incorporates a practical combination of motor-control, machine-interface and safety functions. Its integrated I/O provides 6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output and 1 motor-temperature input, enabling the drive to interact directly with sensors, switches, control signals and motor monitoring devices.
For machine communication, the drive supports USS and MODBUS RTU, allowing operating commands, status information and drive parameters to be exchanged with compatible automation controllers. The integrated Safe Torque Off (STO) function can be incorporated into appropriate machine safety concepts to prevent torque-producing operation of the motor.
PRODUCT SPECIFICATIONS
- Article Number: 6SL3210-1KE14-3UB2
- Drive Series: SINAMICS G120C
- Input Supply: 3AC 380–480 V, +10% / -20%
- Input Frequency: 47–63 Hz
- Low Overload Rating: 1.5 kW
- High Overload Rating: 1.1 kW
- Low Overload: 150% / 3 s, 110% / 57 s, 100% / 240 s
- High Overload: 200% / 3 s, 150% / 57 s, 100% / 240 s
- Digital Inputs: 6 DI
- Digital Outputs: 2 DO
- Analog Input: 1 AI
- Analog Output: 1 AO
- Motor Temperature Input: 1
- Communication: USS / MODBUS RTU
- Safety: Integrated Safe Torque Off (STO)
- External Supply: 24 V
- Protection: IP20 / UL Open Type
- Frame Size: FSAA
- Dimensions: 173 × 73 × 155 mm (H × W × D)
- Filter: Unfiltered
BENEFITS
- 1.5 kW LO / 1.1 kW HO drive rating
- Designed for 380–480 V three-phase industrial power systems
- Supports both Low Overload and High Overload applications
- Integrated STO safety function
- Built-in 6DI / 2DO / 1AI / 1AO interface
- Dedicated motor-temperature input
- USS / MODBUS RTU communication capability
- External 24 V control supply
- Compact FSAA mechanical design
- IP20 / UL Open Type construction
- Suitable for control-panel installation
- Applicable to OEM machinery and industrial automation
- Suitable for PLC-based motor-control architectures
WHY CHOOSE SINAMICS G120C?
The G120C combines motor control, machine interfacing, communication and safety functionality within a compact drive platform. Instead of treating the VFD only as a speed controller, it can be integrated as a dedicated drive component within a complete automation system, connecting the PLC, machine signals and motor through a structured control architecture.
