6SL3210-1KE23-2UF1

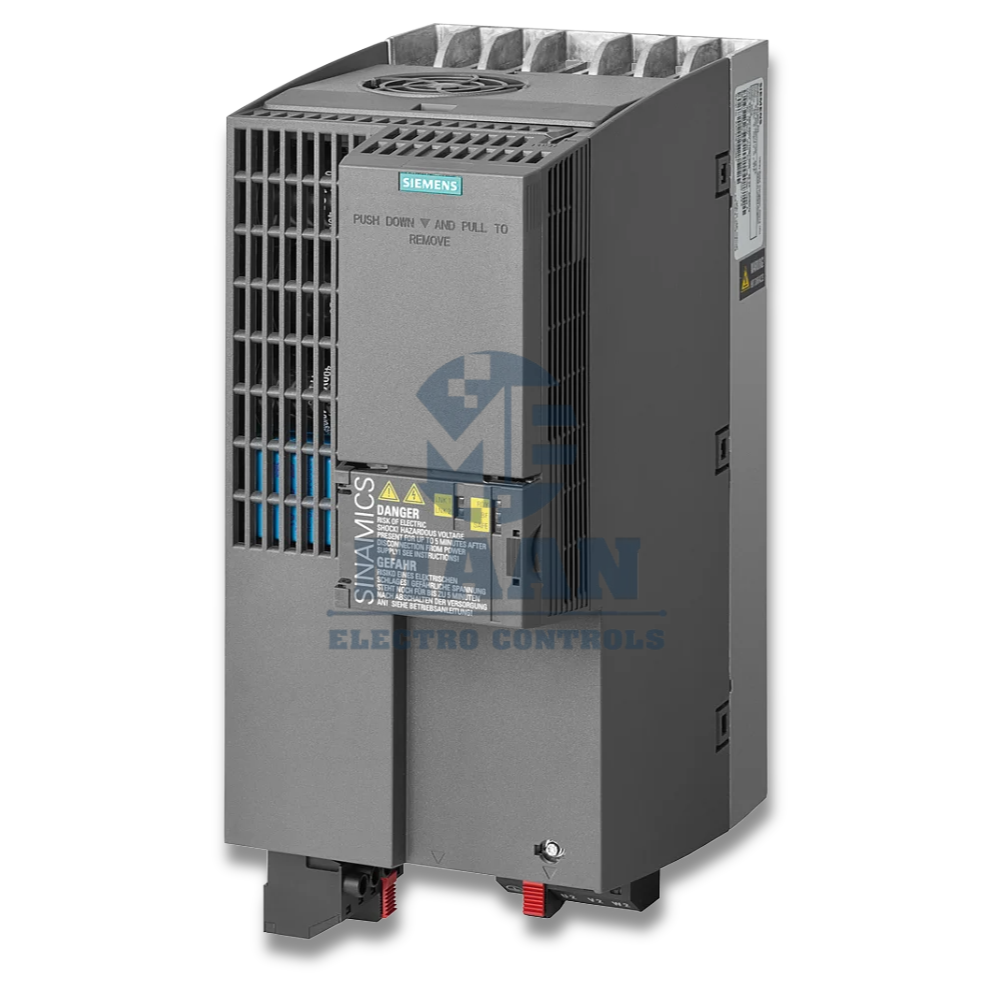

Siemens SINAMICS G120C – 6SL3210-1KE23-2UF1
The Siemens SINAMICS G120C 6SL3210-1KE23-2UF1 is a compact and versatile 15 kW variable frequency drive (VFD) engineered for reliable three-phase motor control in industrial automation applications. This G120C drive is designed for a 380–480 V AC supply and operates across a 47–63 Hz input frequency range.
With integrated PROFINET communication, Safe Torque Off (STO), flexible digital and analog I/O, and an external 24 V interface, the drive can be integrated into modern Siemens automation systems and machine-control architectures.
Technical Specifications
Manufacturer : Siemens
Product Family : SINAMICS G120C
Article Number : 6SL3210-1KE23-2UF1
Drive Type : Variable Frequency Drive / Inverter
Rated Supply : 3AC 380–480 V
Voltage Tolerance : +10% / −20%
Input Frequency : 47–63 Hz
Low Overload Rating : 15.0 kW
High Overload Rating : 11.0 kW
LO Overload : 150% for 3 s / 110% for 57 s / 100% for 240 s
HO Overload : 200% for 3 s / 150% for 57 s / 100% for 240 s
Filter L : Unfiltered
Digital Inputs : 6 DI
Digital Outputs : 2 DO
Analog Input : 1 AI
Analog Output : 1 AO
Motor Temperature Interface : 1 Mot_T
Safety Function : Integrated Safe Torque Off
Communication Interface : PROFINET / PN
External Control Supply : 24 V
Protection : IP20 / UL Open Type
Frame Size : FSC
Dimensions : 295 × 140 × 205 mm
Dimensions H × W × D : 295 × 140 × 205 mm
Low Overload & High Overload Performance
The drive provides two different overload operating profiles for different application requirements.
Low Overload – 15 kW
· 15.0 kW rated power
· 150% overload for 3 seconds
· 110% overload for 57 seconds
· 100% load for 240 seconds
High Overload – 11 kW
· 11.0 kW rated power
· 200% overload for 3 seconds
· 150% overload for 57 seconds
· 100% load for 240 seconds
This makes the drive suitable for applications where either continuous power operation or short-duration high torque demand needs to be accommodated.
