6SL3210-1KE24-4UF1

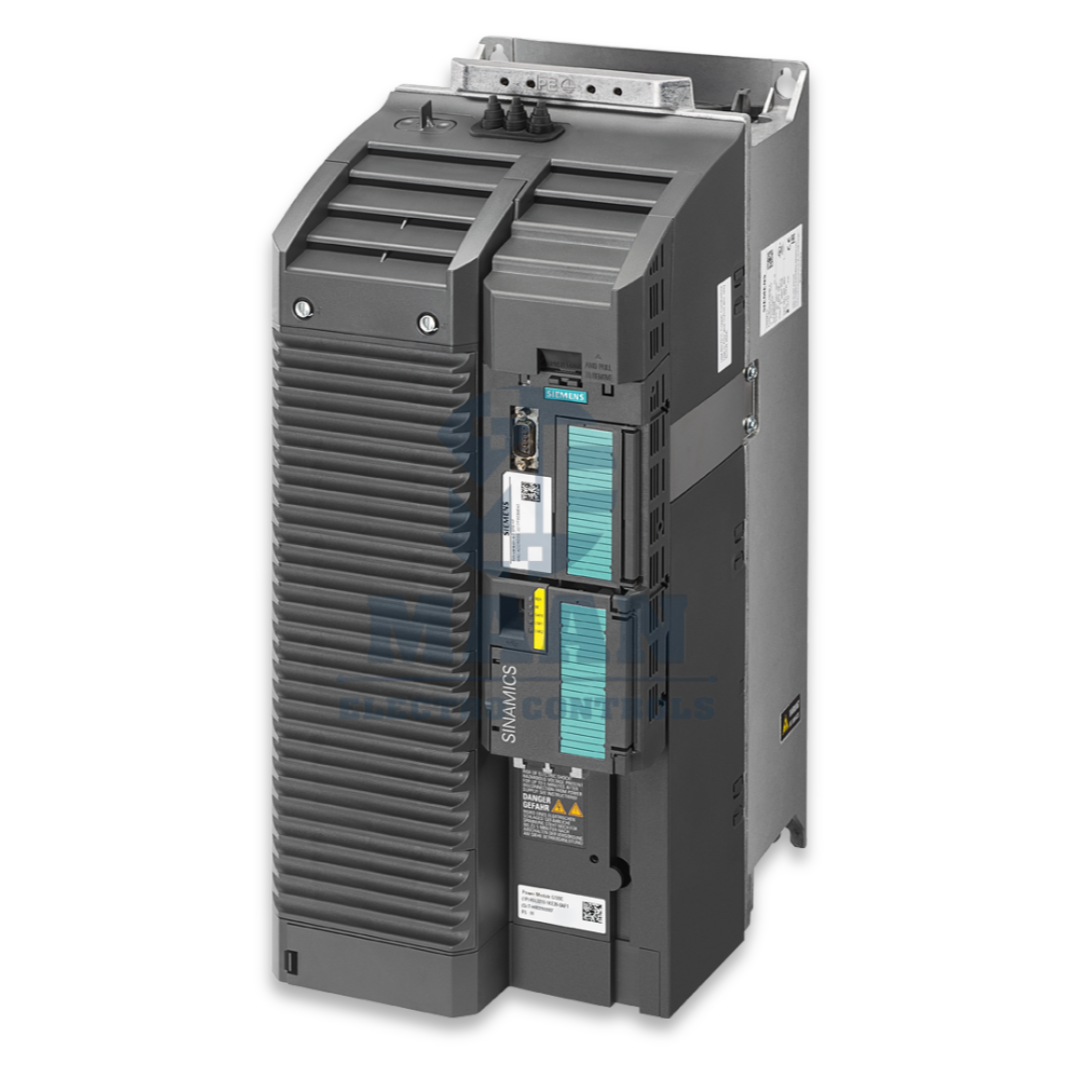

SIEMENS SINAMICS G120C 22 kW – 6SL3210-1KE24-4UF1
The Siemens SINAMICS G120C 6SL3210-1KE24-4UF1 is a 22 kW industrial variable frequency drive (VFD) engineered for dependable three-phase motor control in demanding automation environments. Operating from a 380–480 V AC, 3-phase supply, this G120C model provides controlled motor speed and torque while integrating essential communication, I/O and safety functions into a compact drive platform.
The drive supports 150% overload for 3 seconds, making it suitable for applications where motors experience short-duration increased load conditions. Its integrated PROFINET-PN interface enables connection with modern industrial Ethernet automation networks, while the built-in Safe Torque Off (STO) function supports machine safety architectures.
TECHNICAL SPECIFICATIONS
Product Family : SINAMICS G120C
Article Number : 6SL3210-1KE24-4UF1
Rated Power : 22.0 kW
Input Voltage : 380–480 V AC
Supply : 3 AC
Voltage Tolerance : +10% / -20%
Input Frequency : 47–63 Hz
Overload Capacity : 150% for 3 seconds
Fieldbus : PROFINET-PN integrated
Digital Inputs : 6 DI
Digital Outputs : 2 DO
Analog Input : 1 AI
Analog Output : 1 AO
Safety Function : Safe Torque Off (STO)
Protection Rating : IP20 / UL Open Type
Frame Size : FSD
Dimensions : 472 × 200 × 237 mm
External Supply : 24 V
Filter : Unfiltered
PRODUCT HIGHLIGHTS
22 kW POWER
High-capacity drive solution for suitable industrial motors.
380–480 V 3AC
Designed for three-phase industrial power systems within the specified voltage range.
150% OVERLOAD / 3 s
Provides short-duration overload capability for suitable applications.
INTEGRATED PROFINET
Enables networked communication with compatible automation controllers.
6 DI + 2 DO + 1 AI + 1 AO
Provides integrated machine-control and signal interfaces.
INTEGRATED STO
Supports suitable machine-safety architectures.
FSD FRAME SIZE
Configured for higher-power G120C applications.
IP20 / UL OPEN TYPE
Designed for installation in an appropriately protected environment.
