6SL3210-1PE18-0UL1

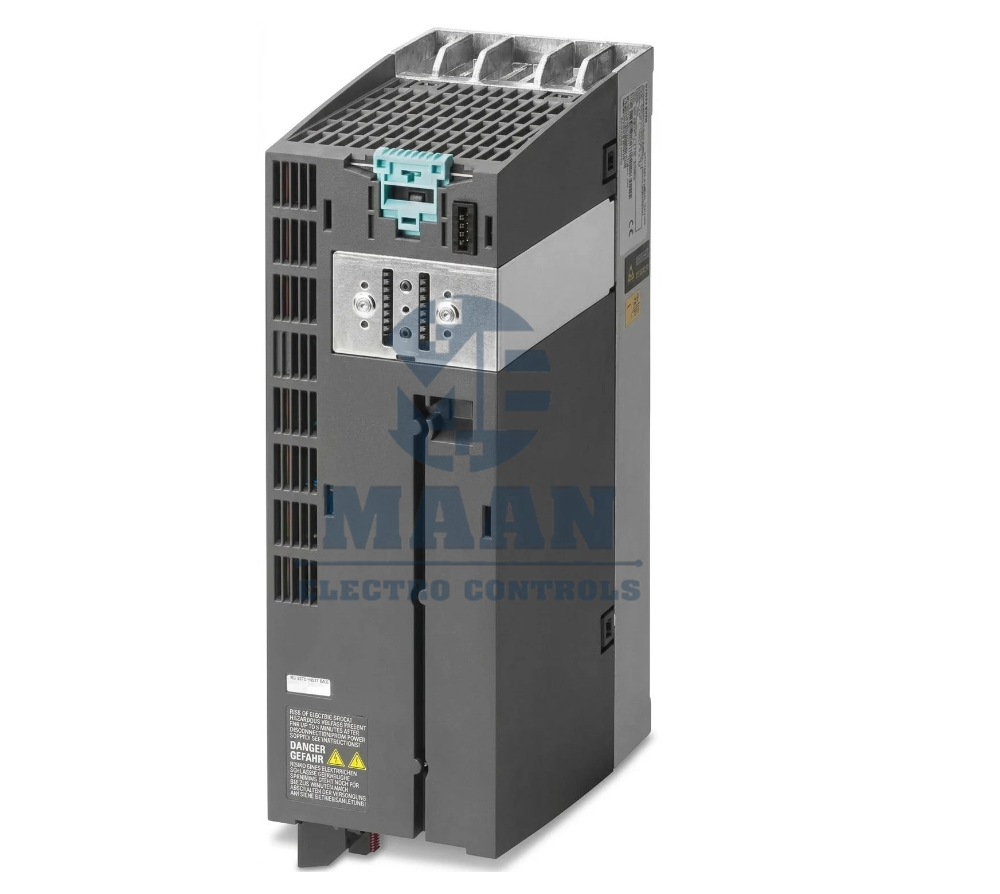

6SL3210-1PE18-0UL1 – SINAMICS Power Module PM240-2
The Siemens SINAMICS PM240-2 Power Module 6SL3210-1PE18-0UL1 is an unfiltered three-phase power module designed for industrial drive applications requiring reliable motor control and dynamic braking. It operates on 380–480 V AC, 3-phase supply and includes an integrated braking chopper for controlled braking applications. The module is supplied without a Control Unit or operating unit and features a compact FSA housing with IP20 protection.
PRODUCT SPECIFICATIONS
- Product: SINAMICS Power Module PM240-2
- Article Number: 6SL3210-1PE18-0UL1
- Input Voltage: 380–480 V AC, 3-phase
- Frequency: 47–63 Hz
- Filter: Unfiltered
- Braking: Integrated braking chopper
- Frame Size: FSA
- Dimensions (H × W × D): 196 × 73 × 165 mm
- Degree of Protection: IP20
- Control Unit: Not included
- Operating Unit: Not included
- CU Firmware: Released from CU firmware version V4.6
POWER / OVERLOAD CAPABILITY
High Overload (HO):
- 2.2 kW
- 200% overload for 3 seconds
- 150% overload for 57 seconds
- 100% load for 240 seconds
- Ambient temperature: -10 to +50 °C
Low Overload (LO):
- 3 kW
- 150% overload for 3 seconds
- 110% overload for 57 seconds
- 100% load for 240 seconds
- Ambient temperature: -10 to +40 °C
BENEFITS
- Integrated braking chopper for dynamic braking applications
- Supports demanding industrial motor-drive operations
- Compact FSA design saves panel space
- 380–480 V AC three-phase operation
- High and low overload operating modes
- IP20 protection for electrical panel installation
- Suitable for integration with compatible SINAMICS Control Units
- Designed for industrial automation, machinery and drive systems
