6SL3210-1PE21-4UL0

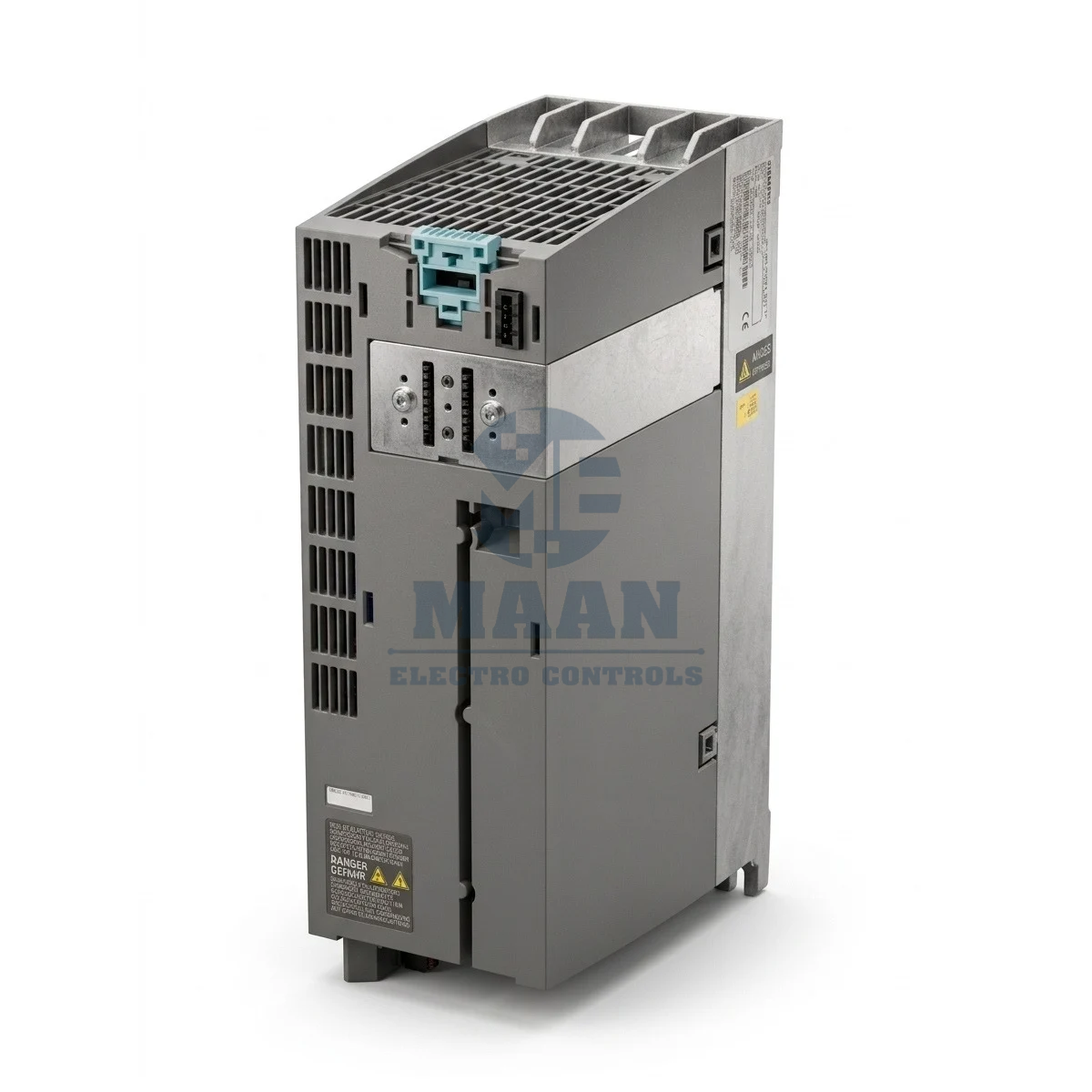

6SL3210-1PE21-4UL0 – SINAMICS POWER MODULE PM240-2
The Siemens SINAMICS Power Module PM240-2, 6SL3210-1PE21-4UL0 is a compact, high-performance power module designed for demanding industrial drive applications. It operates on a 3-phase 380–480 V AC supply and provides reliable motor power conversion for variable-speed drive systems.
This PM240-2 version features an integrated braking chopper, making it suitable for applications where controlled deceleration and regenerative braking management are required. The module is supplied without a filter and without a Control Unit, allowing it to be integrated with a compatible SINAMICS control architecture.
With High Overload operation up to 4 kW and Low Overload operation up to 5.5 kW, the module can support different industrial load requirements. Its IP20 protection, FSB frame size, and compact 291 × 100 × 165 mm dimensions make it suitable for panel-mounted industrial automation systems.
MAIN SPECIFICATIONS
· Product: SINAMICS Power Module PM240-2
· Order Number: 6SL3210-1PE21-4UL0
· Supply: 3AC 380–480 V ±10%
· Frequency: 47–63 Hz
· High Overload Power: 4 kW
· Low Overload Power: 5.5 kW
· Integrated Braking Chopper: Yes
· Filter: Without filter
· Control Unit: Not included
· Frame Size: FSB
· Protection: IP20
· Dimensions: 291 × 100 × 165 mm (H × W × D)
· Ambient Temperature: -10 to +50 °C for High Overload
· Ambient Temperature: -10 to +40 °C for Low Overload
· Firmware: Approved for CU firmware version V4.6
SIEMENS AUTOMATION INTEGRATION
The PM240-2 can form part of a complete Siemens SINAMICS automation architecture, where the Power Module works together with a compatible Control Unit, motor, braking resistor and automation controller.
A typical system can be configured as:
SIMATIC PLC → SINAMICS Control Unit → PM240-2 → Motor
The PLC can provide machine-control commands while the SINAMICS drive system manages motor speed, torque and acceleration/deceleration. This makes the PM240-2 suitable for integration into Siemens PLC, HMI and industrial automation systems.
BENEFITS
· High-performance Siemens power module
· 3-phase 380–480 V AC operation
· Integrated braking chopper
· Supports high-overload and low-overload applications
· Compact FSB construction
· IP20 protection
· Suitable for industrial panel integration
· Designed for SINAMICS drive system architectures
· Suitable for OEMs, machine builders and system integrators
· Supports controlled motor operation and deceleration
