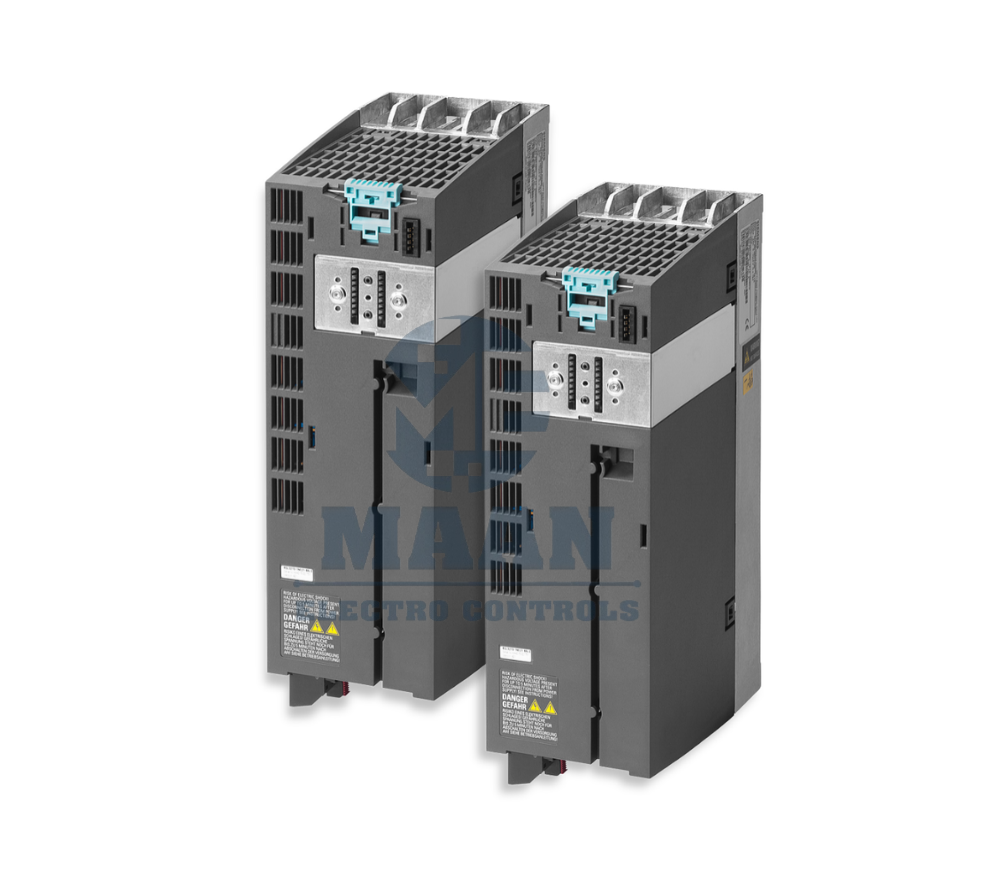

SIEMENS SINAMICS PM240-2 | 6SL3210-1PE22-7UL0

Power the next stage of industrial motion control with the Siemens SINAMICS PM240-2 Power Module.

The 6SL3210-1PE22-7UL0 is a 380–480 V 3-phase Power Module with an integrated braking chopper, engineered for flexible drive configurations where reliable power conversion, controlled deceleration and overload capability are essential.

TECHNICAL SPECIFICATIONS

• Model: 6SL3210-1PE22-7UL0
• Series: SINAMICS PM240-2
• Input: 3AC 380–480 V
• Permitted voltage variation: +10% / -10%
• Input frequency: 47–63 Hz
• Design: Unfiltered Power Module
• Braking: Integrated braking chopper
• High Overload (HO): 7.5 kW
• HO overload: 200% for 3 s / 150% for 57 s / 100% for 240 s
• HO ambient temperature: -10 to +50 °C
• Low Overload (LO): 11 kW
• LO overload: 150% for 3 s / 110% for 57 s / 100% for 240 s
• Frame size: FSC
• Dimensions: 355 × 140 × 165 mm
• Protection: IP20
• Control Unit: Not included
• Operator Panel: Not included
• Firmware approval: Compatible with CU firmware V4.6

ENGINEERED FOR DRIVE SYSTEM INTEGRATION

The PM240-2 separates the power conversion stage from the control architecture, making it suitable for modular SINAMICS drive configurations. The integrated braking chopper provides a practical solution for applications where motor energy during deceleration needs to be managed through an external braking resistor.

BENEFITS OF SIEMENS SINAMICS PM240-2 – 6SL3210-1PE22-7UL0

• High Overload Performance – 7.5 kW High Overload capability with up to 200% overload for 3 seconds, supporting demanding machine load conditions.
• Flexible Power Operation – Provides 7.5 kW HO and 11 kW LO ratings, allowing the module to be selected according to different machine load profiles.
• Integrated Braking Chopper – Built-in braking chopper enables integration with a suitable braking resistor for applications requiring controlled and faster deceleration.
• Reliable Industrial Power Conversion – Designed for 3-phase 380–480 V AC industrial power systems and continuous-duty applications.
• Wide Operating Temperature Range – HO operation from -10°C to +50°C provides flexibility for various industrial environments.
• Modular Drive Architecture – Separating the power module from the Control Unit allows greater flexibility when configuring a SINAMICS drive system.
• Space-Efficient Panel Integration – FSC frame size and 355 × 140 × 165 mm dimensions support organized installation inside suitable control cabinets.
• IP20 Protection – Suitable for protected indoor installation within electrical panels and industrial control cabinets.
• Suitable for Dynamic Applications – The overload capability and braking functionality make it appropriate for machinery with frequent acceleration, deceleration and changing load conditions.
• OEM-Friendly Solution – Well suited for machine builders, panel manufacturers and system integrators developing customized Siemens drive solutions.
• SINAMICS System Integration – Designed for use with a compatible Siemens Control Unit, enabling integration into a complete SINAMICS drive architecture.
• Industrial Automation Compatibility – Suitable for applications involving conveyors, production machinery, material handling, packaging equipment and other variable-speed motor applications.
