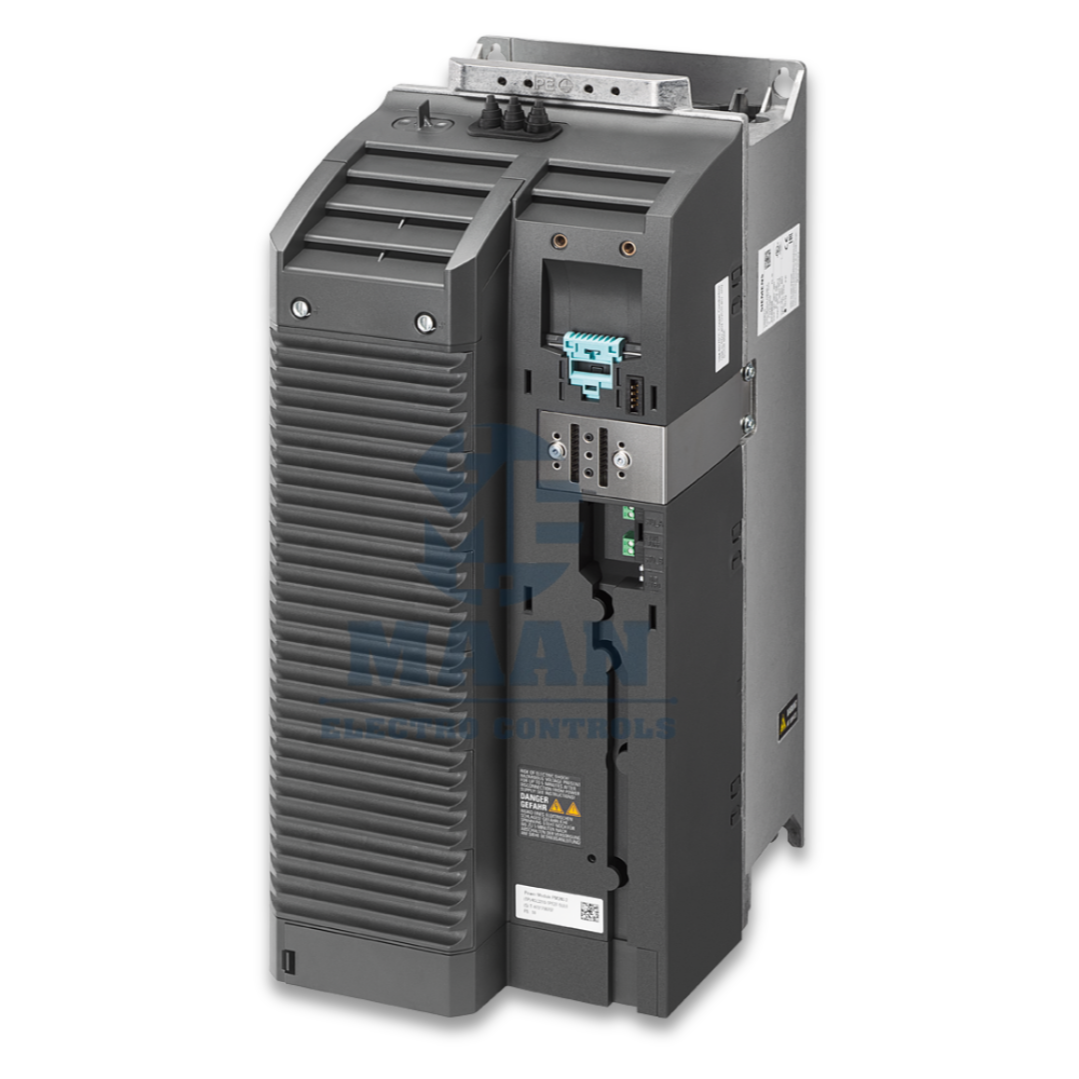

Siemens SINAMICS G120 PM240-2 – 6SL3210-1PE23-8UL0

6SL3210-1PE23-8UL0 is a Siemens SINAMICS G120 Power Module PM240-2, designed for demanding industrial drive applications requiring reliable motor control, high overload capability, and integrated braking functionality. This FSD Power Module operates on 3-phase 380–480 V AC and includes a built-in braking chopper for dynamic braking applications.

PRODUCT DETAILS

·        Product: SINAMICS G120 Power Module PM240-2

·        Order No.: 6SL3210-1PE23-8UL0

·        Input Voltage: 3AC 380–480 V +10% / -20%

·        Frequency: 47–63 Hz

·        Frame Size: FSD

·        Protection: IP20

·        Filter: Without integrated filter

·        Braking: Built-in braking chopper

·        Control Unit: Not included

·        Panel: Not included

·        Dimensions (H × W × D): 472 × 200 × 237 mm

·        Ambient Temperature: -20°C to +50°C for HO; -20°C to +40°C for LO

·        Approved Control Unit Firmware: V4.7 HF8

POWER & OVERLOAD CAPABILITY

High Overload (HO):

·        Rated power: 15 kW

·        200% for 3 seconds

·        150% for 57 seconds

·        100% for 240 seconds

·        Ambient temperature: -20°C to +50°C

Low Overload (LO):

·        Rated power: 18.5 kW

·        150% for 3 seconds

·        110% for 57 seconds

·        100% for 240 seconds

·        Ambient temperature: -20°C to +40°C

FEATURES

·        Siemens SINAMICS G120 modular drive system

·        PM240-2 power module architecture

·        Built-in braking chopper for dynamic braking applications

·        Supports both High Overload and Low Overload operating modes

·        Suitable for demanding industrial motor applications

·        Compact FSD frame size

·        IP20 protection for cabinet/panel installation

·        Designed for integration with a compatible SINAMICS G120 Control Unit

·        Suitable for applications requiring controlled acceleration, deceleration and motor speed regulation

BENEFITS

High Overload Performance: Supports demanding load cycles with up to 200% overload for 3 seconds in HO operation.

Integrated Braking Chopper: Enables connection of a suitable braking resistor for applications requiring faster or controlled deceleration.

Flexible Power Rating: Provides 15 kW HO and 18.5 kW LO operating capability according to the selected load profile.

Modular Architecture: The power module can be combined with a suitable Siemens G120 Control Unit to build a complete drive system.

Industrial Design: IP20 construction and FSD format make it suitable for installation inside electrical cabinets and automation panels.
