6SL3210-1PE34-8CL0

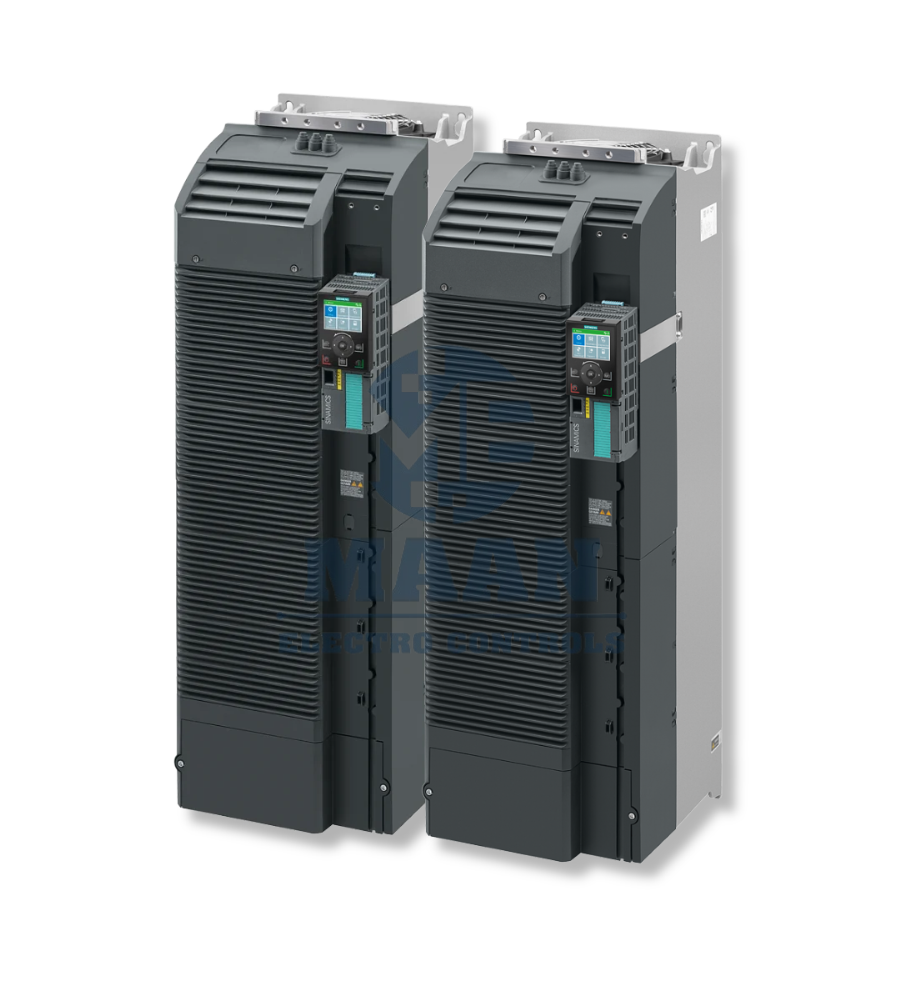

The Siemens SINAMICS G120/S120 Power Module PM240-2 – 6SL3210-1PE34-8CL0 is a high-performance power module designed for demanding industrial drive applications. This FSG C3 Power Module operates on a 3-phase 380–480 V AC supply and features a built-in braking chopper for controlled braking applications.
With a 200 kW High Overload (HO) rating and 250 kW Low Overload (LO) rating, this PM240-2 is suitable for large motors and heavy-duty industrial machinery. It provides reliable variable-speed control and can be integrated into Siemens automation systems using the appropriate Control Unit.
The module is supplied without a Control Unit and operator panel, allowing system integrators and machine builders to configure the drive according to application requirements. It has IP20 protection and supports specified CU firmware versions V4.7 SP9 and V5.1.
Product Details
· Product: SINAMICS G120/S120 Power Module PM240-2
· Part Number: 6SL3210-1PE34-8CL0
· Frame Size: FSG C3
· Input Voltage: 3AC 380–480 V +10% / -10%
· Frequency: 47–63 Hz
· Built-in Feature: Braking chopper
· High Overload Rating: 200 kW
· HO Overload: 200% for 3 sec, 150% for 57 sec, 100% for 240 sec
· Low Overload Rating: 250 kW
· LO Overload: 150% for 3 sec, 110% for 57 sec, 100% for 240 sec
· HO Ambient Temperature: -20°C to +50°C
· LO Ambient Temperature: -20°C to +40°C
· Dimensions (H × W × D): 1000 × 305 × 357 mm
· Protection: IP20
· Control Unit: Not included
· Operator Panel: Not included
· Compatible CU Firmware: V4.7 SP9 and V5.1
SIEMENS AUTOMATION INTEGRATION
The 6SL3210-1PE34-8CL0 SINAMICS PM240-2 Power Module can form part of a Siemens integrated automation solution when combined with a compatible SINAMICS Control Unit. This modular architecture allows the Power Module, Control Unit, motor and automation controller to be configured according to the machine or process requirements.
Typical Siemens automation integration can include:
· SIMATIC S7 PLC for machine and process control
· TIA Portal for engineering and commissioning of compatible automation components
· SINAMICS Control Units for drive control and communication
· PROFINET-based communication where supported by the selected Control Unit
· SIMATIC HMI for operator monitoring and machine control
· SINAMICS drive commissioning and parameter management
· Motor speed, torque and process control
· Integration with broader Siemens industrial automation architectures
