6SL3210-5FB10-8UA0

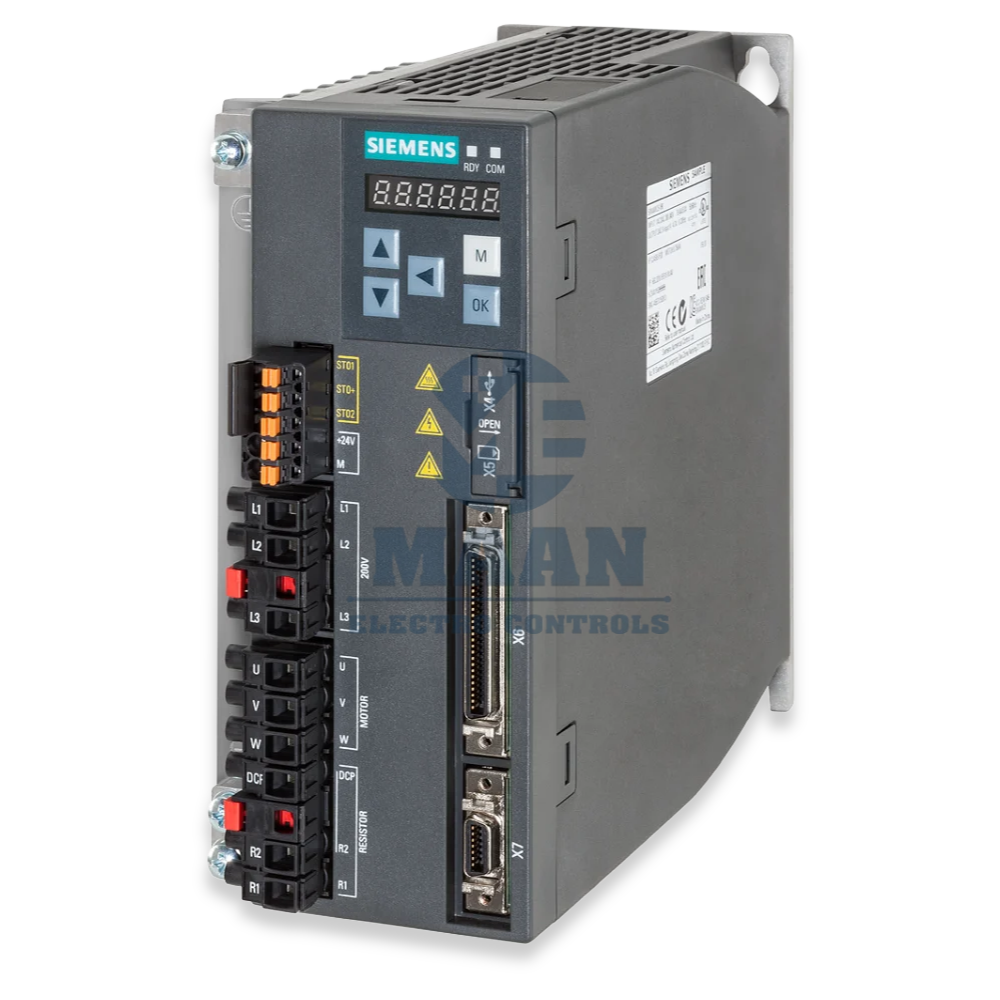

SIEMENS SINAMICS V90 SERVO DRIVE – 6SL3210-5FB10-8UA0
6SL3210-5FB10-8UA0 is a Siemens SINAMICS V90 servo drive for 0.75 kW servo motor applications, designed for precise and responsive motion control in industrial automation systems. With a 200–240 V AC input, 4.7 A output current, 0–330 Hz output frequency, compact Size C construction, and IP20 protection, this drive is suitable for machine-control and panel-integration applications.
PRODUCT DETAILS
- Product: Siemens SINAMICS V90 Servo Drive
- Article Number: 6SL3210-5FB10-8UA0
- Motor Power: 0.75 kW
- Input Voltage: 200–240 V 1/3-phase AC
- Input Voltage Tolerance: -15% / +10%
- Input Current: 10.4 A / 5.0 A
- Input Frequency: 45–66 Hz
- Output Voltage: 0 – Input Voltage
- Output Current: 4.7 A
- Output Frequency: 0–330 Hz
- Degree of Protection: IP20
- Frame Size: Size C
- Dimensions (W × H × D): 80 × 170 × 195 mm
PRODUCT TECHNICAL DATA
The SINAMICS V90 6SL3210-5FB10-8UA0 is configured for low-voltage AC servo applications and supports a 0.75 kW motor rating. Its 200–240 V AC supply configuration allows integration into suitable industrial control panels and machine automation systems.
The drive provides an output range of 0–330 Hz and an output current rating of 4.7 A, supporting controlled servo motor operation across a wide range of machine-motion requirements.
Its compact 80 × 170 × 195 mm Size C housing allows efficient installation where panel space is limited. The IP20 protection rating makes it intended primarily for installation inside suitable electrical control cabinets.
PRODUCT FEATURES
- Siemens SINAMICS V90 servo drive technology
- 0.75 kW motor power rating
- 200–240 V AC input supply
- Supports 1-phase / 3-phase AC input configuration
- Input frequency range of 45–66 Hz
- 4.7 A output current
- Output frequency up to 330 Hz
- Compact Size C construction
- IP20 degree of protection
- Suitable for control-panel installation
- Designed for industrial motion-control applications
- Suitable for machine automation and OEM equipment
- Compatible with the appropriate Siemens V90 servo system components
BENEFITS OF SINAMICS V90 6SL3210-5FB10-8UA0
1. Precise Servo Motion
The V90 platform is designed for applications where controlled and repeatable motor movement is required, supporting automated machine operations.
2. Compact Design
Its 80 mm width and compact Size C format help reduce control-panel space requirements and support efficient machine design.
3. Suitable for 0.75 kW Applications
The drive is configured for 0.75 kW servo motor applications, making it appropriate for small and medium machine-motion functions.
4. Flexible AC Input
The 200–240 V, 1/3-phase AC supply configuration provides flexibility for appropriate industrial machine installations.
5. Wide Output Frequency Range
With an output frequency range of 0–330 Hz, the drive supports a broad range of controlled servo operating requirements.
6. Easy Panel Integration
The compact form factor and IP20 enclosure are suited to installation within properly designed automation and electrical control cabinets.
7. Industrial Automation Integration
The SINAMICS V90 can be incorporated into machine automation architectures alongside compatible Siemens controllers, HMIs, servo motors, and other automation components.
