6SL3210-5FE17-0UA0

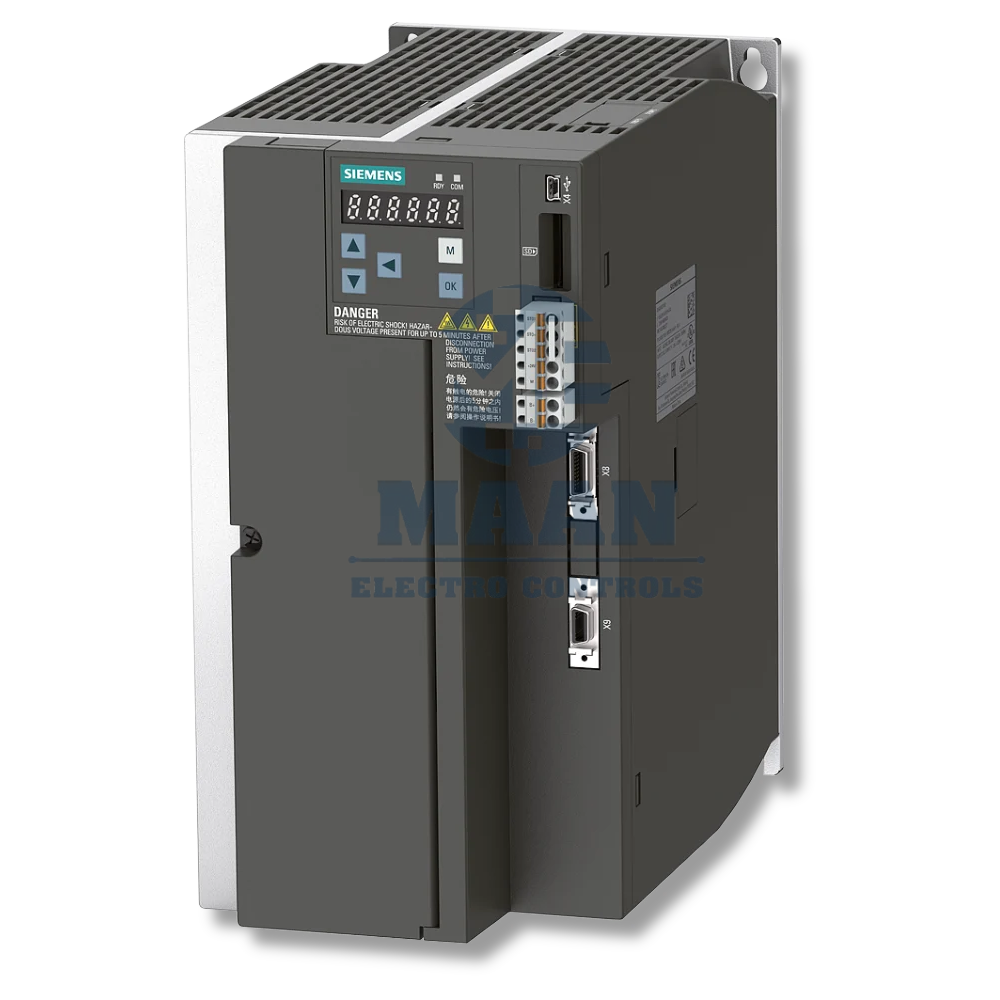

Siemens SINAMICS V90 7 kW Servo Drive – 6SL3210-5FE17-0UA0
The Siemens SINAMICS V90 – 6SL3210-5FE17-0UA0 is a servo drive for compatible 7.0 kW motors, operating from a 380–480 V three-phase AC supply. It delivers a specified 13.2 A output current with an output frequency range of 0–330 Hz. The size C housing, measuring 140 × 260 × 240 mm, provides defined dimensions for installation in a suitable control cabinet.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SINAMICS V90
· Order Number: 6SL3210-5FE17-0UA0
· Product Type: Servo Drive
· Input Voltage: 380–480 V AC, three-phase
· Input Voltage Tolerance: −15% / +10%
· Input Current: 16.5 A
· Input Frequency: 45–66 Hz
· Output Voltage: 0 V up to input voltage
· Output Current: 13.2 A
· Output Frequency: 0–330 Hz
· Motor Power Rating: 7.0 kW
· Degree of Protection: IP20
· Frame Size: C
· Dimensions: 140 × 260 × 240 mm (W × H × D)
FEATURES
· Three-Phase Power Input: Accepts the stated 380–480 V AC supply within the specified voltage tolerance.
· Motor Output Control: Supplies controlled voltage and frequency to an appropriately matched servo motor.
· 7.0 kW Power Class: Supports motor selection within the stated rating, subject to exact drive compatibility.
· 13.2 A Output Rating: Provides a defined current value for checking motor and application requirements.
· Size C Construction: Helps establish the space required for cabinet integration.
APPLICATION
· Feeding Mechanisms: Drive suitable servo axes that move material into a machine.
· Indexing Stations: Support programmed movement between operating positions.
· Assembly Equipment: Operate compatible motor-driven positioning mechanisms.
· Transfer Systems: Control suitably sized axes moving components between stations.
