SIEMENS HMI
WHAT IS SIEMENS HMI?
Siemens HMI (Human Machine Interface) is an industrial operator interface used to monitor, control, and interact with machines and automation systems. It provides a visual connection between the operator and PLC-controlled equipment.
The HMI displays machine information such as status, speed, temperature, alarms, production values, operating modes, and process parameters. Operators can also use the touchscreen or keys to send commands to the PLC.
HOW DOES SIEMENS HMI WORK?
1. Sensors collect machine/process information.
2. PLC processes the input signals according to the control program.
3. HMI communicates with the PLC through an industrial communication network.
4. HMI displays the PLC data using graphical screens, values, indicators, trends, and alarms.
5. The operator enters commands or changes parameters through the HMI.
6. The PLC receives these commands and controls the machine accordingly.
FUNCTIONS OF SIEMENS HMI
1. MACHINE MONITORING
Real-time visualization of machine and process conditions.
2. OPERATOR CONTROL
Operators can start, stop, reset, and control machine functions from the HMI.
3. ALARM MANAGEMENT
Displays faults, warnings, and diagnostic messages to help operators identify problems.
4. DATA VISUALIZATION
Shows temperatures, pressures, speeds, counters, levels, and other process values.
5. TREND & DATA DISPLAY
Historical and real-time trends can be used to observe process behavior.
6. PARAMETER SETTING
Operators can enter or adjust machine parameters according to authorized operating requirements.
7. PLC & DRIVE INTEGRATION
Siemens HMI can be integrated with SIMATIC PLCs and SINAMICS drives for coordinated machine control and monitoring.

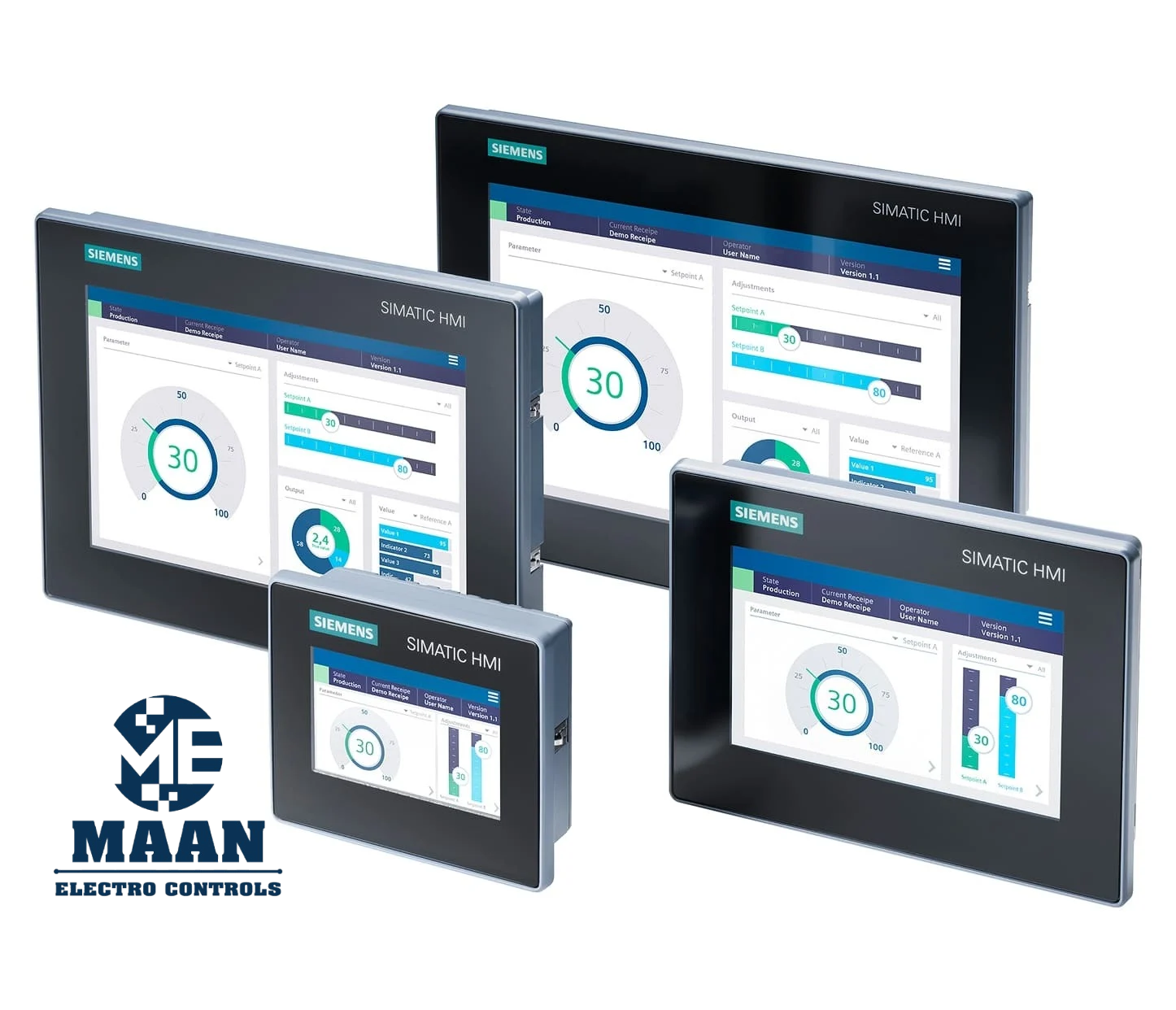

SIEMENS HMI PRODUCT RANGE
· SIMATIC HMI Basic Panels
· SIMATIC HMI Comfort Panels
· SIMATIC HMI Mobile Panels
· SIMATIC HMI Unified Comfort Panels
· Industrial PC-based HMI solutions
