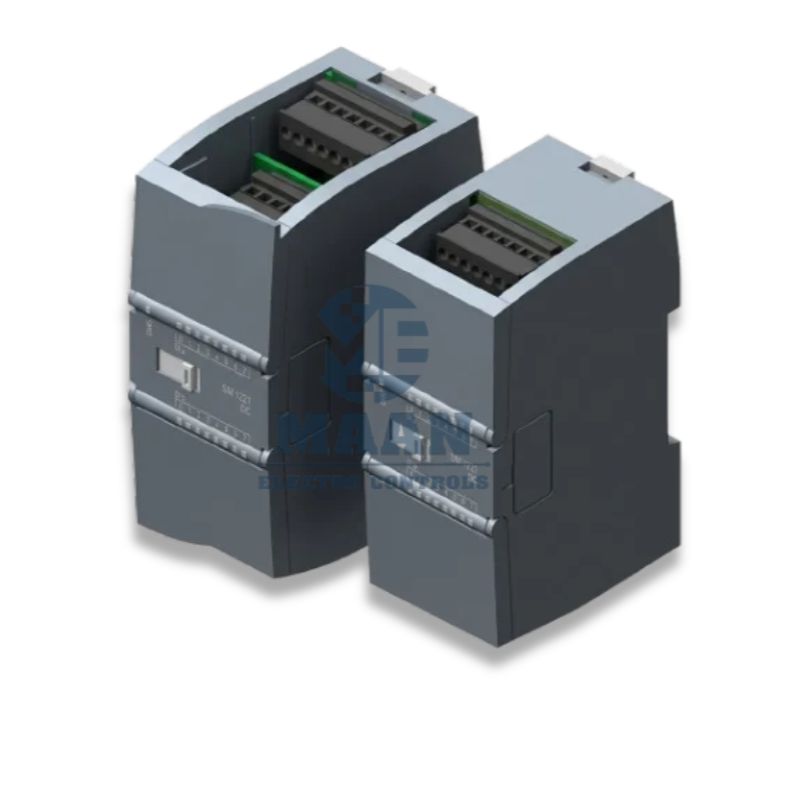

SIEMENS SIMATIC S7-1200 DIGITAL INPUT MODULES
Siemens SIMATIC S7-1200 Digital Input (DI) Modules are signal modules used to expand the digital input capacity of an S7-1200 PLC. They receive ON/OFF signals from field devices such as push buttons, selector switches, proximity sensors, limit switches, photoelectric sensors and other digital devices.
PRODUCT DETAILS
S7-1200 Digital Input Modules are designed for applications requiring additional digital inputs beyond the built-in inputs available on the CPU. These modules integrate with the S7-1200 controller and are configured through TIA Portal for industrial automation and machine-control applications.
COMMON DIGITAL INPUT CONFIGURATIONS
· SM 1221 Digital Input Modules
· 8 Digital Inputs
· 16 Digital Inputs
· 32 Digital Inputs
· Available with different input voltage configurations depending on the module
· Suitable for 24 V DC digital signals in commonly used variants
· Compact design for control-panel installation
· Diagnostic capabilities depending on module type
APPLICATIONS
· Machine automation
· Conveyor systems
· Packaging machinery
· Material handling
· Assembly machines
· Pump and motor control
· Process monitoring
· Sensor signal acquisition
· OEM machine panels
· Industrial production lines
HOW DIGITAL INPUT MODULES WORK
A digital input module receives a discrete signal from a field device.
Example:
Proximity Sensor → S7-1200 Digital Input Module → PLC Program → Output/Control Action
When the sensor changes from OFF to ON, the corresponding PLC input changes state. The CPU then processes this signal according to the user program in TIA Portal.
BENEFITS
· Expands S7-1200 digital input capacity
· Easy integration with SIMATIC S7-1200 CPUs
· Suitable for compact and modular machine designs
· Supports reliable field-signal acquisition
· Simplifies connection of additional sensors and switches
· Convenient configuration through TIA Portal
· Suitable for OEM and industrial automation systems
SIEMENS S7-1200 DIGITAL INPUT RANGE
The S7-1200 ecosystem includes SM 1221 digital input signal modules as well as CPUs with integrated digital inputs. The exact module should be selected according to input quantity, signal voltage, wiring configuration and application requirements.
If you want, I can also provide a complete list of Siemens S7-1200 Digital Input Module part numbers with DI count, voltage, wiring and specifications.
