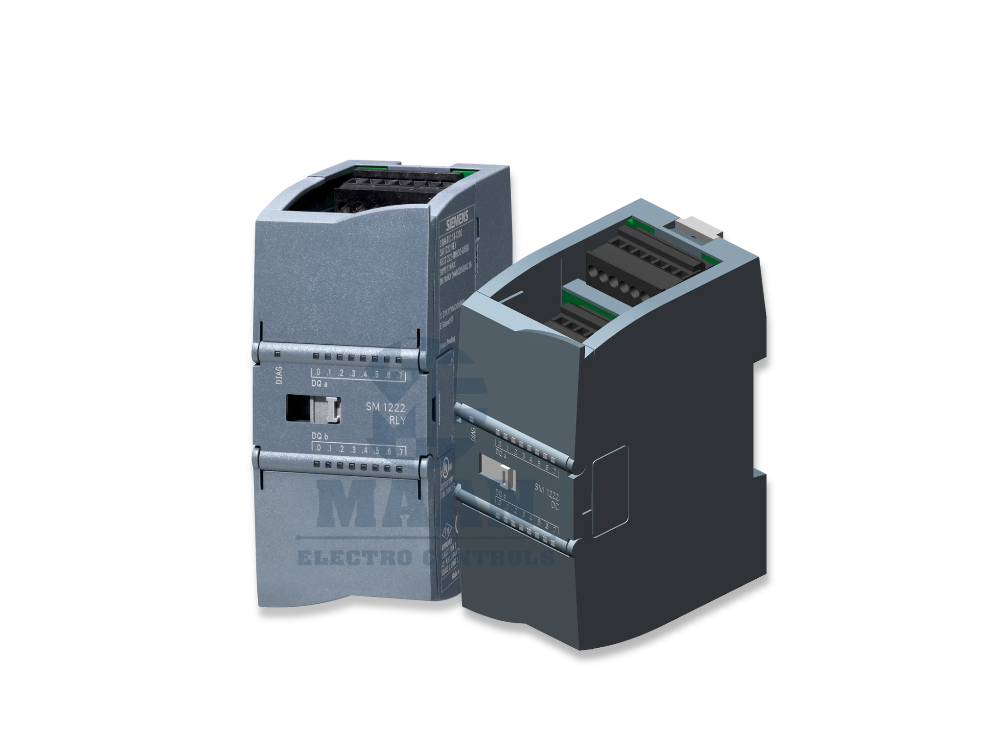

SIEMENS SIMATIC S7-1200 DIGITAL OUTPUT MODULES
Siemens SIMATIC S7-1200 Digital Output Modules are modular signal expansion units designed to increase the digital output capacity of S7-1200 CPUs. They provide additional channels for controlling industrial loads and are suitable for compact machines as well as larger automated systems.
The SM 1222 Digital Output (DQ) modules are primarily used when the integrated outputs of an S7-1200 CPU are not sufficient for the application. Depending on the selected module, outputs are available in transistor or relay technology, allowing the PLC to interface with different types of field devices.
· Solenoid valve operation
· Relay switching
· Motor starter commands
· Signal lamps and stack lights
· Pneumatic and hydraulic actuators
· Conveyor control
· Machine sequencing
· Alarm and status indication
· General-purpose industrial switching
DIGITAL OUTPUT MODULE CONFIGURATIONS
1. SM 1222 – 8 Digital Outputs
The SM 1222 8-channel digital output modules provide eight additional PLC outputs.
Typical configuration:
· 8 digital outputs
· Available in transistor or relay versions
· Suitable for machine-control applications
· Compact S7-1200 expansion design
· Direct integration with the S7-1200 CPU
2. SM 1222 – 16 Digital Outputs
The 16-channel SM 1222 provides a larger output capacity for applications requiring multiple actuators.
Typical configuration:
· 16 digital outputs
· Transistor or relay variants
· Suitable for higher-density control panels
· Useful for machines with numerous discrete actuators
· Reduces the need for additional external switching arrangements
ADVANTAGES
· Expandable I/O architecture
· Compact installation
· Multiple output-channel options
· Transistor and relay technology
· Easy integration with S7-1200 CPUs
· Suitable for industrial control panels
· Efficient actuator control
· Flexible machine automation
· Simplified system expansion
· Suitable for OEM machine builders and system integrators
