LOADCELL AMPLIFIER
Description
➥ MAAN ELECTRO CONTROLS
📍 Ahmedabad, Gujarat, India
➥ PRODUCT PROFILE

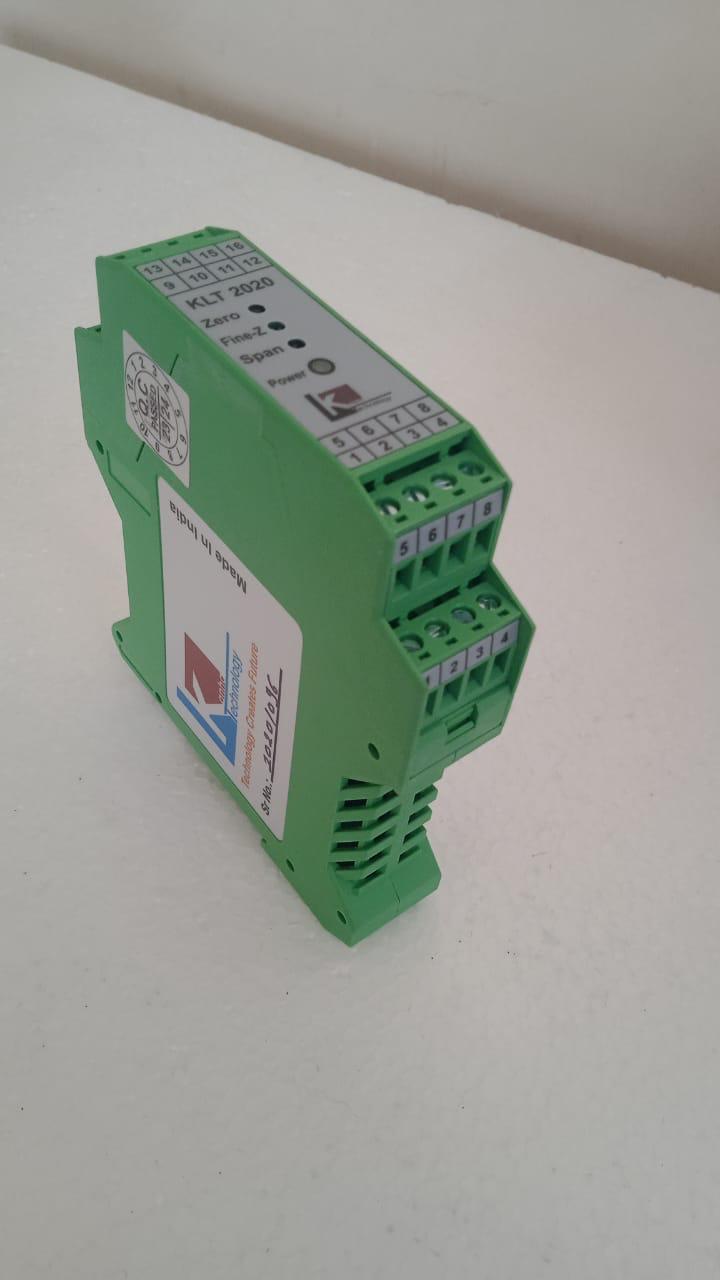

KLT2020 LOAD CELL AMPLIFIER
MODEL : KLT2020
PRODUCT TYPE : Load Cell Amplifier
APPLICATION : Tension Measurement & Signal Conditioning
➣ The KLT2020 Load Cell Amplifier is a high-performance signal conditioning module designed for precise tension and force measurement in industrial automation systems. It amplifies the low-level millivolt signals generated by load cells and converts them into stable, high-accuracy analog voltage outputs for PLCs, HMIs, SCADA systems, and industrial controllers.
➣ Engineered for reliable operation, the KLT2020 provides excellent signal amplification, noise suppression, signal linearization, and stable measurement performance, making it ideal for continuous industrial applications.
➣ With its compact DIN rail design, easy installation, and simple calibration, the amplifier is widely used in slitter machines, flexographic printing machines, rotogravure printing machines, weighing systems, tension control systems, and OEM automation equipment.
➥ TECHNICAL SPECIFICATIONS
➣ Model: KLT2020
➣ Product Type: Load Cell Amplifier
➣ Application: Tension Measurement & Force Measurement
➣ Accuracy Class: 0.1
➣ Input Signal: 0 to ±20 mV
➣ Output Signal: 0 to ±10 V
➣ Operating Voltage: 24 VDC (20–30 VDC)
➣ Bridge Supply Voltage: 10 VDC (9–13 VDC)
➣ Nominal Temperature Range: 0°C to +60°C
➣ Temperature Coefficient (Nominal Value): ±3% / 10 K
➣ Temperature Coefficient (Zero Signal): ±3% / 10 K
➣ Temperature Coefficient (Bridge Voltage): ±0.04% / 10 K
➣ Protection Class:
• DIN Rail Mounting: IP00
• With Housing: IP54
➣ Module Weight: 0.14 kg
