6ES7288-5AE01-0AA0

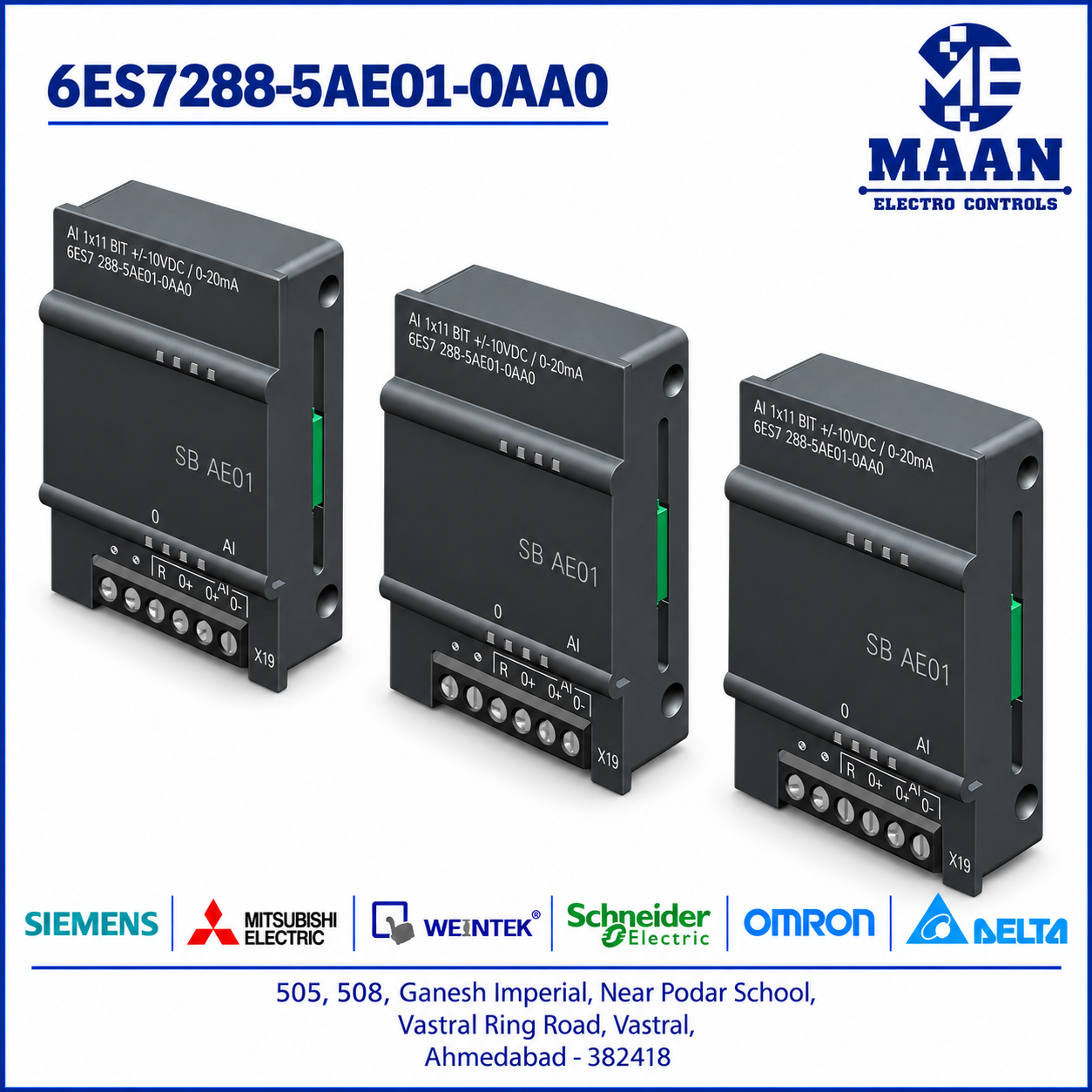

Siemens SIMATIC S7-200 SMART SB AE01 Analog Input Signal Board – 6ES7288-5AE01-0AA0
The Siemens SB AE01 – 6ES7288-5AE01-0AA0 adds one analog input to a compatible SIMATIC S7-200 SMART CPU. Supporting ±10 V, ±5 V, ±2.5 V, or 0–20 mA signals, it provides an additional measurement connection for monitoring process values and incorporating them into programmed machine decisions.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-200 SMART
· Board Model: SB AE01
· Order Number: 6ES7288-5AE01-0AA0
· Product Type: Analog Input Signal Board
· Analog Inputs: 1 AI
· Voltage Input Ranges: ±10 V, ±5 V, ±2.5 V
· Current Input Range: 0–20 mA
· Voltage Resolution: 11 bit + sign
· Current Resolution: 11 bit
APPLICATIONS
· Pressure Monitoring: Read a compatible pressure transmitter with a supported output.
· Level Measurement: Collect a suitable tank or vessel level signal.
· Machine Condition Tracking: Monitor a voltage or current signal representing an operating value.
· Threshold Evaluation: Use the reading to determine programmed indications or control actions.
BENEFITS
· Suits applications requiring one additional measurement channel.
· Offers several voltage ranges alongside a current-input option.
· Allows analog readings to be evaluated with existing digital machine signals.
· Supports focused upgrades to compatible S7-200 SMART installations.
