6ES7223-1BH32-0XB0 IN AHMEDABAD

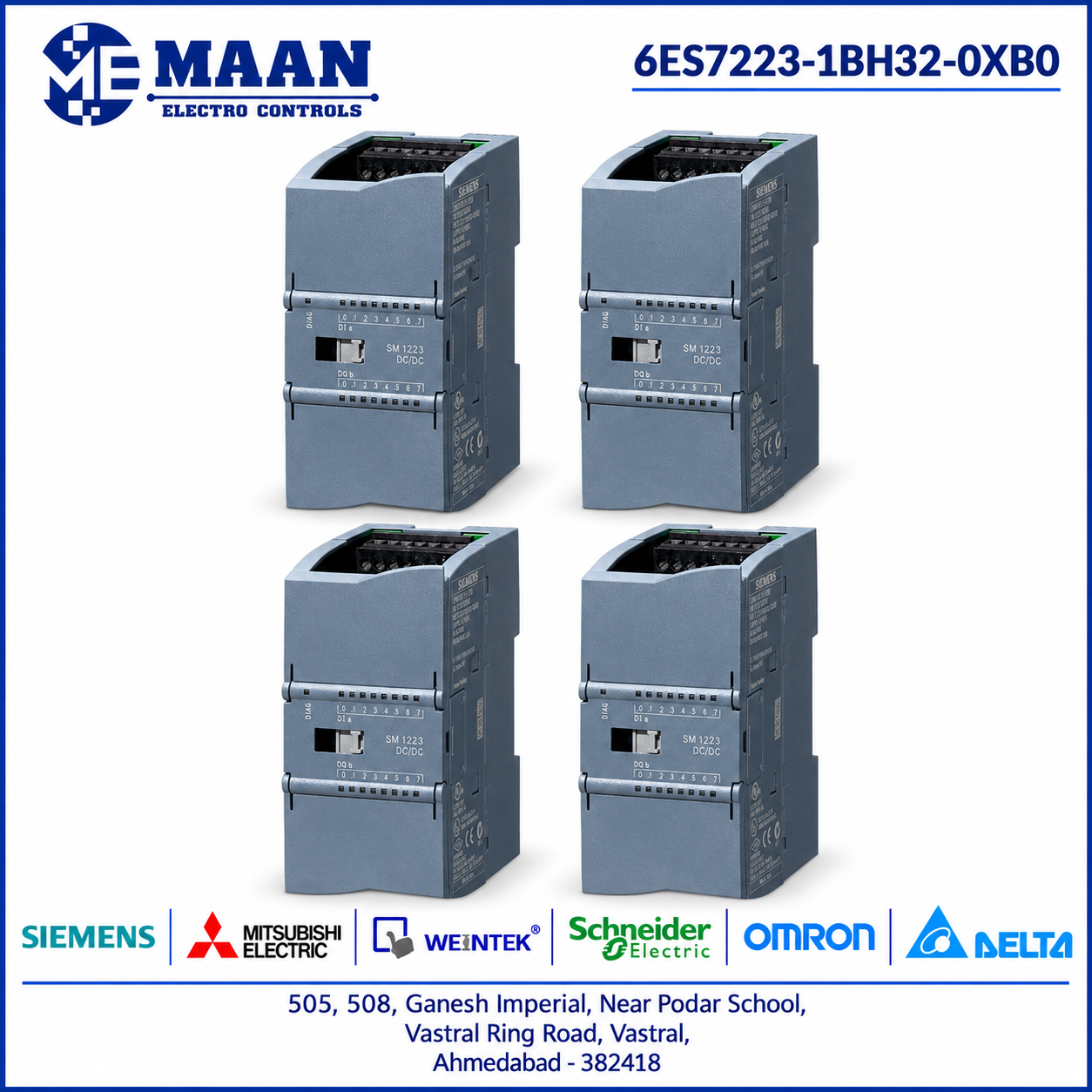

Siemens SIMATIC S7-1200 SM 1223 Digital I/O Module – 6ES7223-1BH32-0XB0
The Siemens SIMATIC S7-1200 SM 1223 – 6ES7223-1BH32-0XB0 combines 8 digital inputs and 8 digital outputs for expansion of compatible S7-1200 controllers. Its 24 V DC inputs support Sink/Source connections, while the transistor outputs rated at 0.5 A per channel switch suitable connected loads. This module supports machines requiring additional sensor monitoring and programmed output control.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-1200
· Module Model: SM 1223
· Order Number: 6ES7223-1BH32-0XB0
· Module Type: Digital Input/Output
· Total I/O Channels: 16 — 8 DI and 8 DO
· Digital Inputs: 8 DI, 24 V DC
· Input Configuration: Sink/Source
· Digital Outputs: 8 DO, 24 V DC
· Output Technology: Transistor
· Rated Output Current: 0.5 A per output
BENEFITS
· Extends both digital input and digital output capacity.
· Supports additional machine functions requiring feedback and control.
· Combines eight inputs and eight outputs in a single expansion module.
· Suits OEM machinery, control-panel projects, and compatible S7-1200 automation systems.
AUTOMATION INTEGRATION
· Confirm compatibility and available expansion capacity with the selected S7-1200 CPU.
· Connect input devices using the appropriate Sink/Source arrangement.
· Check output loads against the specified channel and module limits.
· Configure the module and assign I/O functions in the controller project.
