6ES7288-2DT16-0AA0 IN RANCHI

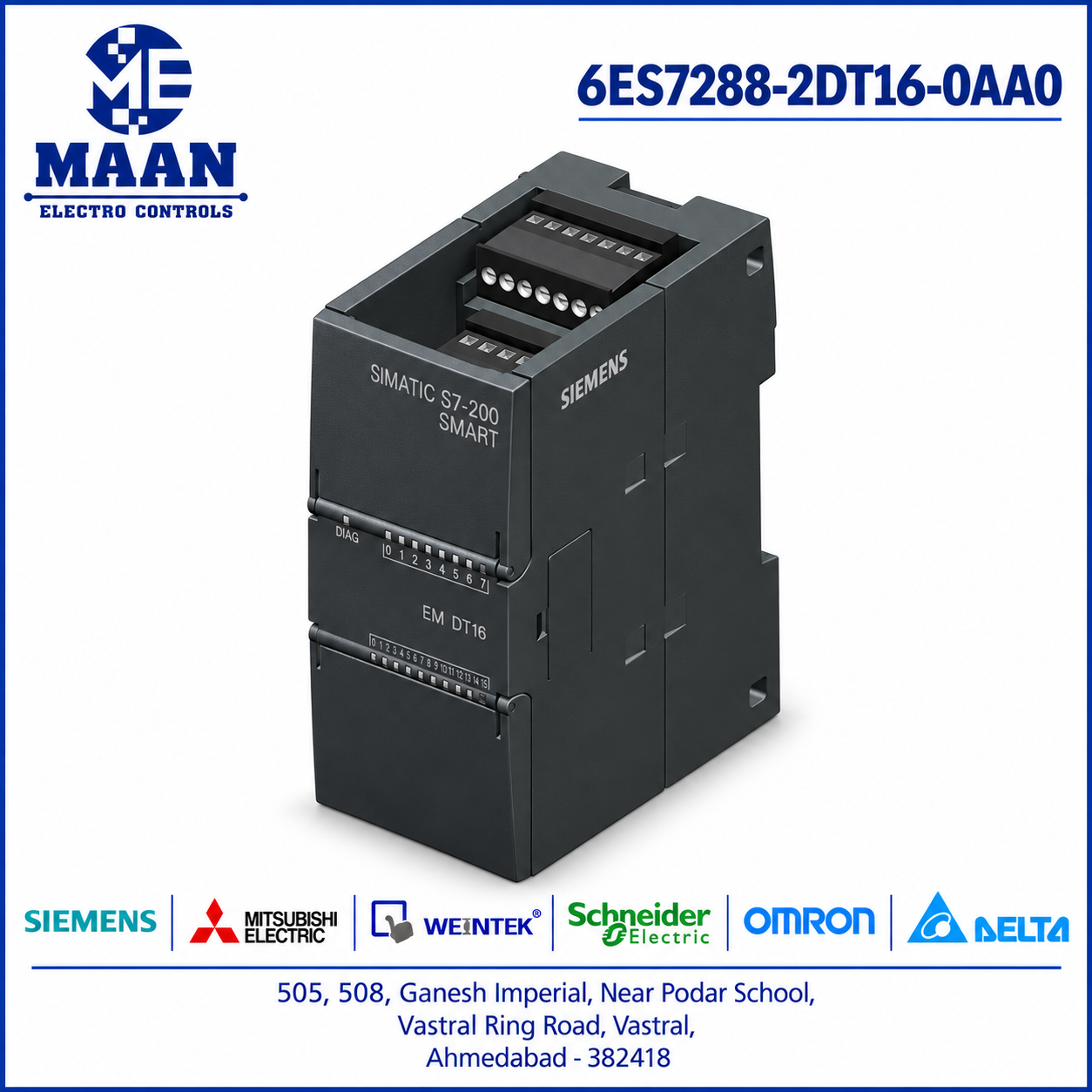

Siemens SIMATIC S7-200 SMART SM DT16 Digital I/O Module – 6ES7288-2DT16-0AA0
The Siemens SIMATIC S7-200 SMART SM DT16 – 6ES7288-2DT16-0AA0 combines 8 digital inputs and 8 digital outputs in one expansion module for compatible S7-200 SMART controllers. Its 24 V DC inputs support Sink/Source wiring, while the transistor outputs rated at 0.75 A provide switching control for suitable connected loads. This combination supports machines requiring additional sensor feedback and programmed output commands.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-200 SMART
· Module Model: SM DT16
· Order Number: 6ES7288-2DT16-0AA0
· Module Type: Digital Input/Output
· Total I/O Channels: 16 — 8 DI and 8 DO
· Digital Inputs: 8 DI, 24 V DC
· Input Configuration: Sink/Source
· Digital Outputs: 8 DO
· Output Technology: Transistor
· Rated Output Current: 0.75 A per output
APPLICATION
· Material Handling: Read position or presence sensors and command suitable handling devices.
· Packaging Sequences: Monitor switches and sensors while controlling compatible output circuits.
· Machine Status Indication: Use input conditions to determine programmed indicator-lamp states.
· Relay and Valve Control: Switch suitable relay or solenoid coils within the specified electrical limits.
· Station Expansion: Add feedback signals and output commands for an additional machine station.
INTEGRATION
· Confirm CPU compatibility and available expansion capacity.
· Follow the specified Sink/Source input wiring arrangement.
· Check connected loads against per-channel and overall output limits.
· Assign input and output addresses to the required functions in the PLC program.
