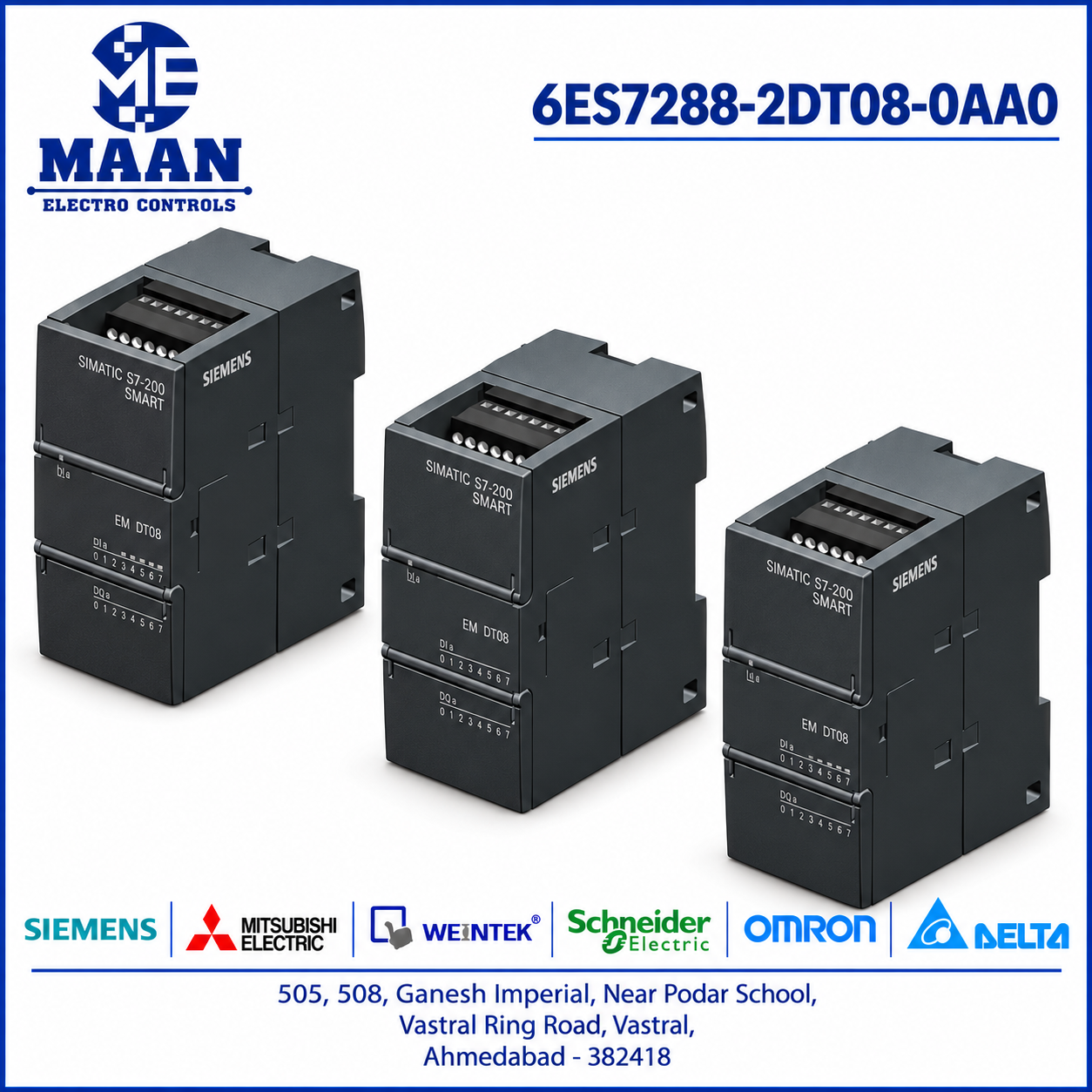

Siemens SIMATIC S7-200 SMART SM DT08 Digital Output Module – 6ES7288-2DT08-0AA0
The Siemens SIMATIC S7-200 SMART SM DT08 – 6ES7288-2DT08-0AA0 adds digital output capacity to compatible S7-200 SMART automation systems. With 8 transistor outputs at 24 V DC, rated at 0.75 A per output, it enables the PLC to switch suitable connected loads according to programmed machine sequences and operating conditions.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-200 SMART
· Module Model: SM DT08
· Order Number: 6ES7288-2DT08-0AA0
· Module Type: Digital Output
· Digital Outputs: 8 DO
· Output Voltage: 24 V DC
· Output Technology: Transistor
· Rated Output Current: 0.75 A per output
TYPICAL CONNECTED DEVICES
· Indicator Lamps: Switch compatible status lamps to display programmed machine conditions.
· Interposing Relays: Operate suitable 24 V DC relay coils for interfacing with other circuits.
· Solenoid Valves: Control compatible DC coils within the applicable output and load limits.
· Equipment Command Inputs: Send ON/OFF signals to devices accepting compatible 24 V DC control signals.
OUTPUT INTEGRATION
· Confirm compatibility and available expansion capacity with the selected S7-200 SMART CPU.
· Check connected load current against the per-channel and overall module limits.
· Follow the specified wiring and protection requirements for the connected loads.
· Assign output addresses and switching conditions in the PLC program.
