6ES7288-5AQ01-0AA0

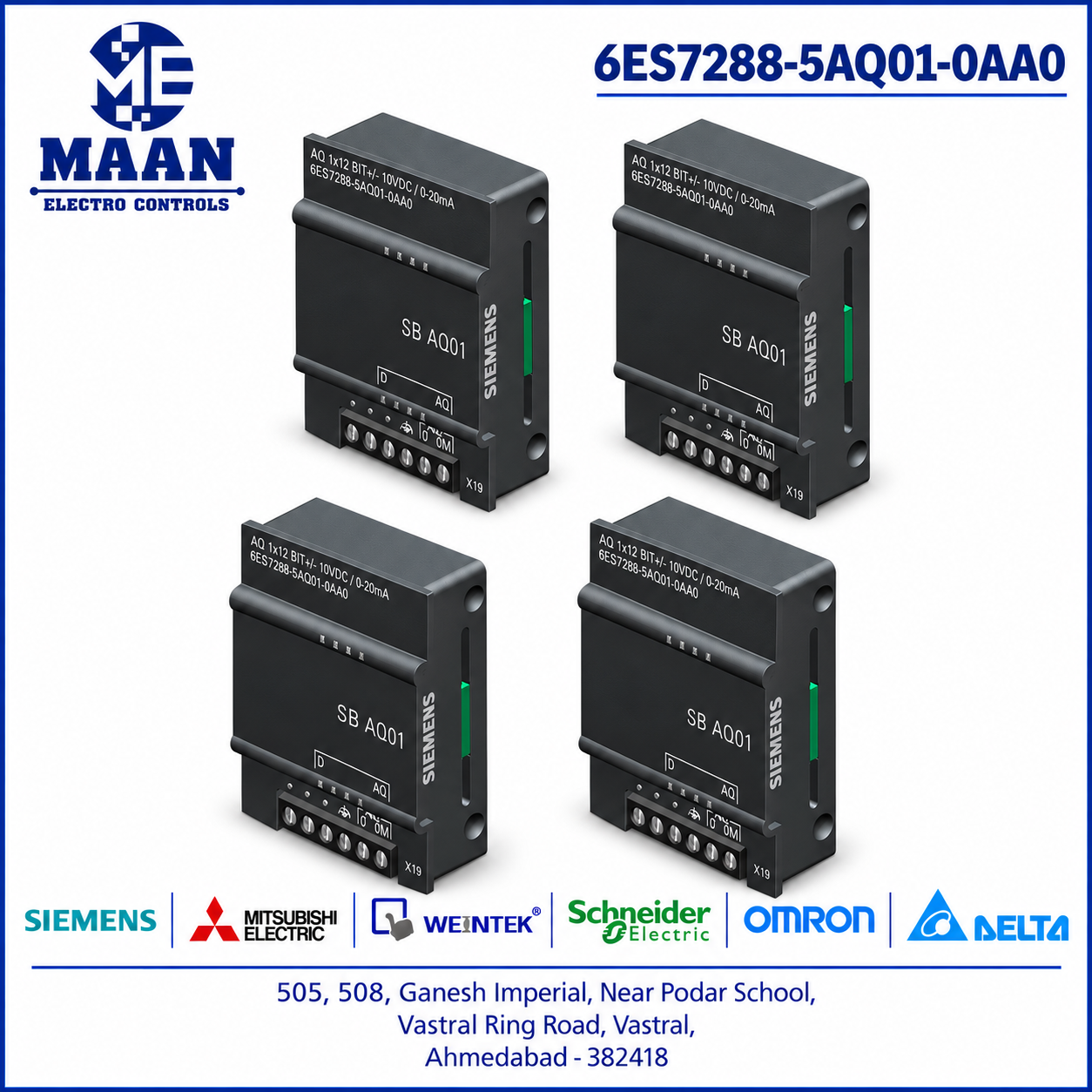

Siemens SIMATIC S7-200 SMART SB AQ01 Analog Output Signal Board – 6ES7288-5AQ01-0AA0
The Siemens SB AQ01 – 6ES7288-5AQ01-0AA0 adds one analog output to a compatible SIMATIC S7-200 SMART CPU. It supports ±10 V DC with 12-bit resolution or 0–20 mA with 11-bit resolution, providing a programmed reference signal for compatible equipment requiring voltage or current commands.
PRODUCT SPECIFICATIONS
· Brand: Siemens
· Product Family: SIMATIC S7-200 SMART
· Board Model: SB AQ01
· Order Number: 6ES7288-5AQ01-0AA0
· Product Type: Analog Output Signal Board
· Analog Outputs: 1 AO
· Voltage Output Range: ±10 V DC
· Voltage Resolution: 12 bit
· Current Output Range: 0–20 mA
· Current Resolution: 11 bit
FEATURES
· Single Analog Channel: Provides one additional connection for an analog-controlled device.
· Bipolar Voltage Output: Generates commands within the specified −10 V to +10 V DC range.
· Current Output Option: Supplies a 0–20 mA signal to compatible receiving equipment.
· Programmed Output Values: Produces setpoints according to logic executed by the PLC CPU.
· Signal Board Integration: Adds output capability through the compatible CPU’s signal board interface.
BENEFITS
· Suits applications requiring one additional analog output.
· Offers voltage or current signalling to match the connected equipment.
· Allows calculated setpoints to form part of the machine’s control sequence.
· Provides a focused signal board option for compatible S7-200 SMART installations.
