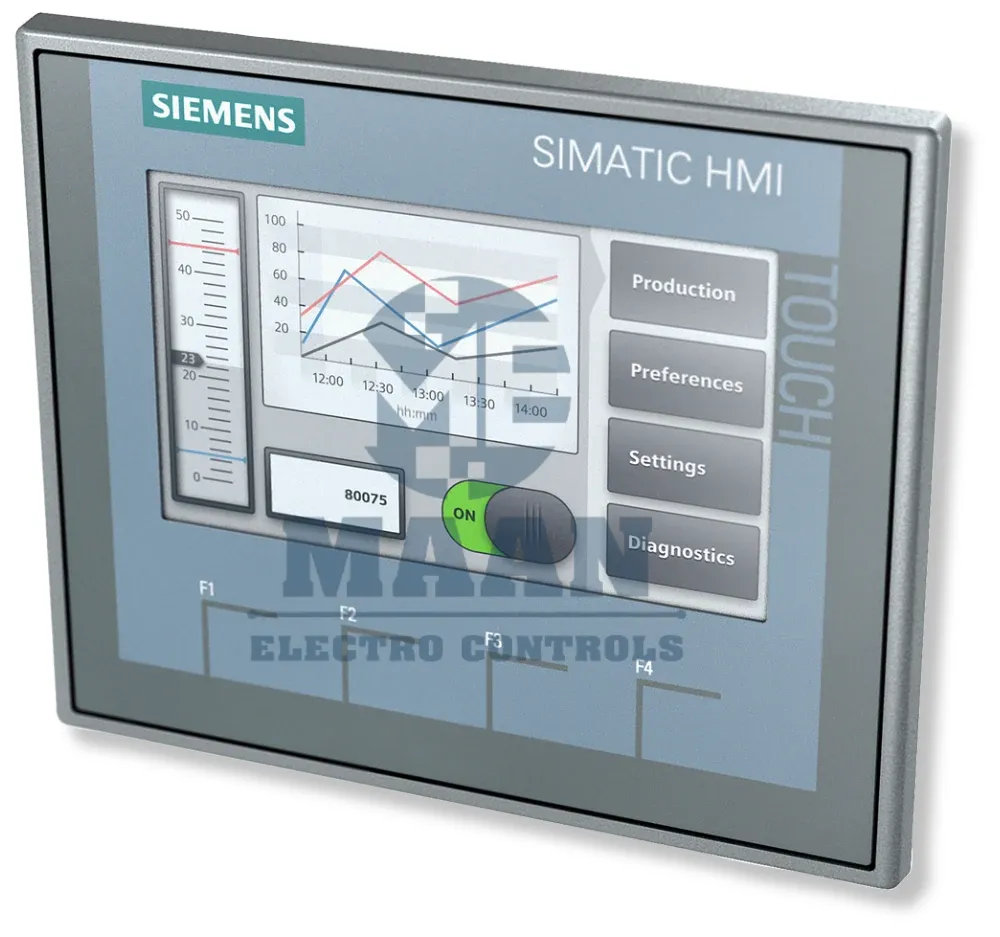

Siemens SIMATIC HMI KTP400 Basic – 6AV2123-2DB03-0AX0

The Siemens SIMATIC HMI KTP400 Basic 6AV2123-2DB03-0AX0 is a compact operator panel designed for machine-level visualization and control in industrial automation applications. It combines key and touch operation with a 4-inch TFT display featuring 65,536 colors, providing a practical interface for monitoring processes, entering parameters, viewing alarms and operating connected machinery.

With an integrated PROFINET interface, the KTP400 Basic can be incorporated into Siemens PLC-based automation architectures for reliable HMI-to-controller communication. The panel can be configured using WinCC Basic V13 / STEP 7 Basic V13, making it suitable for applications based on Siemens engineering environments.

The compact design makes this HMI suitable for OEM machines, control panels, packaging equipment, conveyor systems, assembly machines, material handling systems and other small industrial automation applications where essential operator functions need to be available in a space-efficient panel.

Product Highlights

·        Siemens SIMATIC HMI KTP400 Basic

·        Article Number: 6AV2123-2DB03-0AX0

·        4-inch TFT display

·        65,536 display colors

·        Combined key and touch operation

·        PROFINET communication interface

·        Suitable for PLC-based machine visualization

·        Supports operator commands and parameter entry

·        Alarm and process-status visualization

·        Configurable with WinCC Basic V13 / STEP 7 Basic V13

·        Compact solution for machine-level HMI applications

Features

• 4.3-inch TFT widescreen display with LED backlighting
• 480 × 272 pixel display resolution
• 65,536 colors for clear visualization
• Combined touchscreen and 4 configurable function keys
• PROFINET interface for industrial Ethernet communication
• 24 V DC power supply
• Supports configuration using WinCC Basic V13 / STEP 7 Basic V13
• Suitable for operator control and machine monitoring applications
• Supports communication with Siemens automation systems including SIMATIC S7 controllers
• Compact panel design for space-constrained control cabinets
• Supports both portrait and landscape mounting
• On-screen numeric and alphanumeric keyboard support
• Integrated real-time clock
• Front panel designed for industrial applications

Siemens Automation Integration

·        SIMATIC S7-1200 PLC

·        SIMATIC S7-1500 PLC

·        SIMATIC S7-200 / S7-300 / S7-400

·        SINAMICS drives

·        PROFINET-based automation networks

·        Machine control and monitoring

·        Alarm and status visualization

·        Production parameter entry

·        Process value display and operator commands
