SIEMENS S200 SERVO SYSTEM
What is Siemens S200 Servo System?

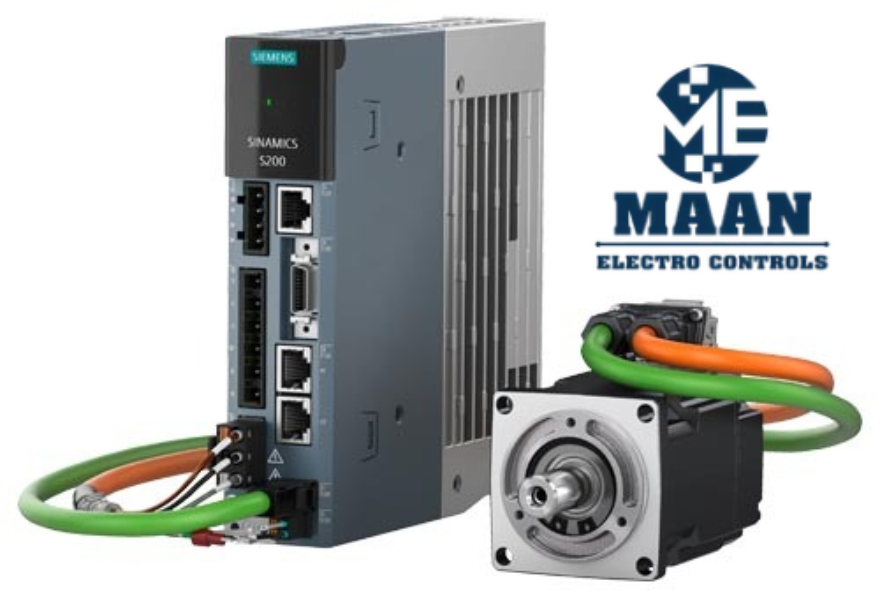

Siemens SINAMICS S200 Servo System is a modern servo motion-control solution developed for machines that require high positioning accuracy, smooth movement, fast response and reliable motion control. The system combines a SINAMICS S200 servo drive with a compatible SIMOTICS S-1FL2 servo motor, encoder and suitable MOTION-CONNECT cables to create a complete servo axis.
The S200 is designed for applications where conventional motor control is not sufficient and the machine requires controlled position, speed and torque. It can be integrated with Siemens automation systems such as SIMATIC PLCs and PROFINET-based control architectures.
How Does the S200 Servo System Work?
PLC / Motion Controller → PROFINET Communication → S200 Servo Drive → Servo Motor → Machine Mechanism → Encoder Feedback
The PLC or motion controller sends the required motion command to the servo drive. The S200 drive processes this command and controls the servo motor. The motor's encoder continuously provides feedback, allowing the system to accurately control the motor's position and speed.
This closed-loop operation helps the machine achieve accurate positioning, controlled acceleration/deceleration and repeatable motion.
Main Components of Siemens S200 Servo System
1. SINAMICS S200 Servo Drive
The servo drive is the main electronic control unit. It receives commands from the automation controller and regulates the motor's electrical output according to the required motion.
2. SIMOTICS S-1FL2 Servo Motor
The servo motor converts the electrical commands from the drive into precise mechanical movement. Different motor configurations can be selected according to the required torque, speed and application.
3. Encoder
The encoder provides motor-position feedback to the drive. This feedback allows the controller to monitor actual motor movement and make corrections when required.
4. MOTION-CONNECT Cables
Power and signal cables connect the servo drive and motor. Correct cable selection is important for reliable operation and proper feedback communication.
5. PLC / Motion Controller
A Siemens PLC or motion controller can generate the required positioning and motion commands. The S200 can be incorporated into a larger Siemens automation architecture.
Key Features
- Precise servo positioning
- Fast dynamic response
- Controlled speed and torque
- Closed-loop motion control
- PROFINET communication on applicable S200 versions
- PROFINET RT/IRT support on applicable configurations
- High-resolution encoder options
- Compact servo-drive design
- Easy commissioning with Siemens engineering tools
- Diagnostic and monitoring capabilities
- Safety functionality such as STO on applicable variants
- Suitable for multi-axis machine applications
- Integration with Siemens automation platforms
