6ES7522-1BH01-0AB0

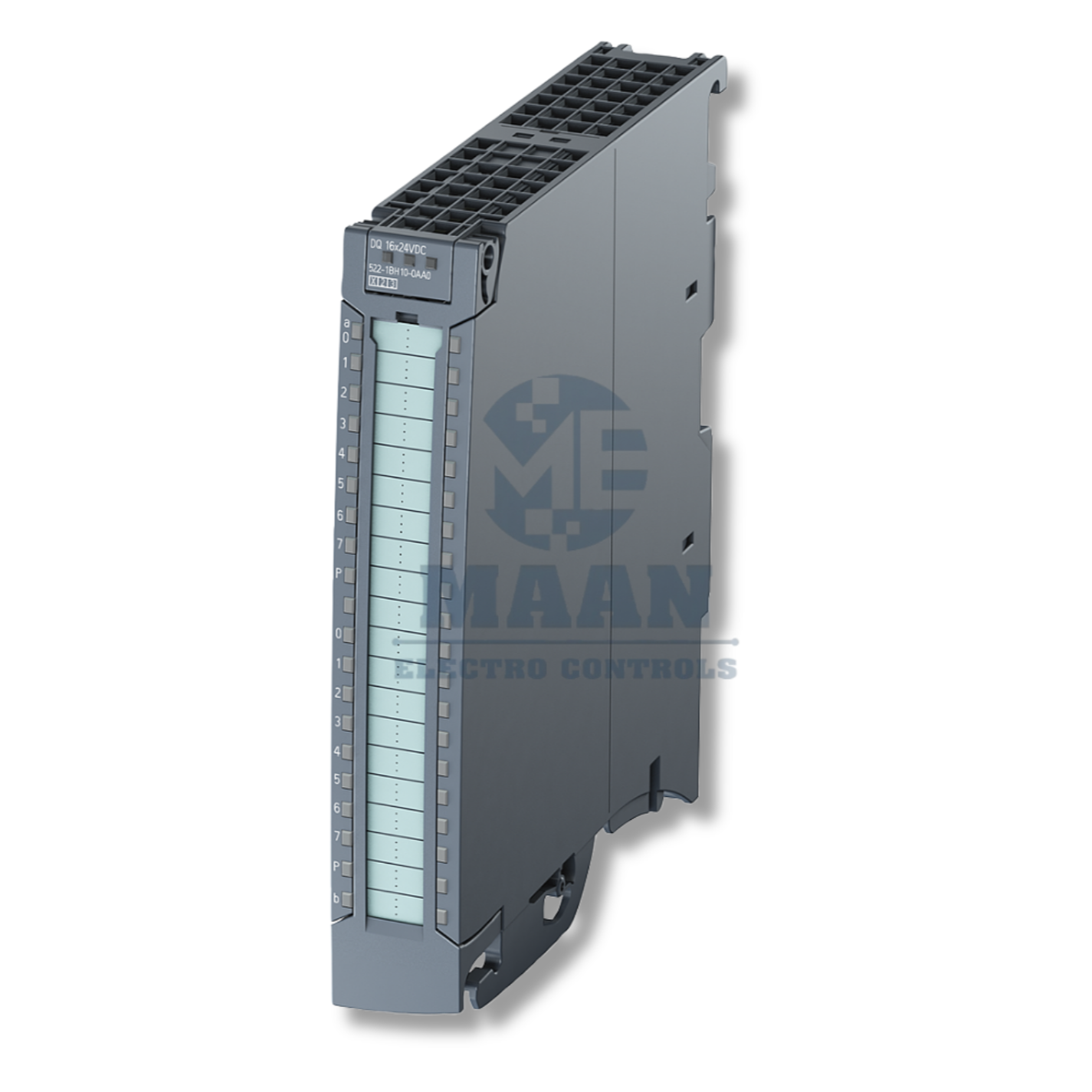

Siemens 6ES7522-1BH01-0AB0 – SIMATIC S7-1500 DQ 16x24 V DC / 0.5 A HF Digital Output Module
6ES7522-1BH01-0AB0 is a SIMATIC S7-1500 Digital Output Module (DQ 16x24 V DC / 0.5 A HF) designed for high-performance industrial automation and machine-control applications. The module provides 16 digital outputs, arranged in two groups of 8 channels, with a maximum current capability of 0.5 A per output and 4 A per group.
The HF module provides advanced diagnostic functionality, substitute-value capability and switching-cycle monitoring for connected actuators. It also supports safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015, when implemented within an appropriately designed safety system.
PRODUCT DETAILS
· Product: SIMATIC S7-1500 Digital Output Module
· Order Number: 6ES7522-1BH01-0AB0
· Module Type: DQ 16x24 V DC / 0.5 A HF
· Digital Outputs: 16 channels
· Output Voltage: 24 V DC
· Output Current: 0.5 A per channel
· Channel Grouping: 16 channels in groups of 8
· Group Current: Up to 4 A per group
· Output Technology: High Feature (HF)
· Diagnostics: Single-channel diagnostics
· Substitute Value: Supported
· Actuator Monitoring: Switching cycle counter for connected actuators
· Safety Function: Supports safety-oriented shutdown of load groups
· Safety Level: Up to SIL 2 according to EN IEC 62061:2021
· Performance Level: Category 3 / PL d according to EN ISO 13849-1:2015
· Front Connector: To be ordered separately
· Connector Options: Screw terminals or Push-in
FEATURES
1. 16 Digital Outputs
Provides 16 × 24 V DC digital outputs, suitable for controlling valves, contactors, relays, solenoids, indicator lamps and other industrial actuators.
2. 0.5 A Output Capacity
Each output can handle up to 0.5 A, making the module suitable for a broad range of industrial DC loads.
3. High-Feature Diagnostics
The HF version provides advanced diagnostic functionality, helping engineers identify individual channel conditions and simplify troubleshooting.
4. Single-Channel Diagnostics
Individual output channels can be monitored for diagnostic conditions, improving machine availability and maintenance efficiency.
5. Switching Cycle Counter
The module supports a switching cycle counter for connected actuators. This can be useful for monitoring actuator usage and planning preventive maintenance.
6. Substitute Value Function
Substitute values can be used when required by the application, helping maintain defined machine behavior during specific operating or fault conditions.
7. Safety-Oriented Shutdown
The module supports safety-oriented shutdown of load groups up to SIL 2 and Category 3 / PL d, when correctly integrated into an appropriate safety system.
